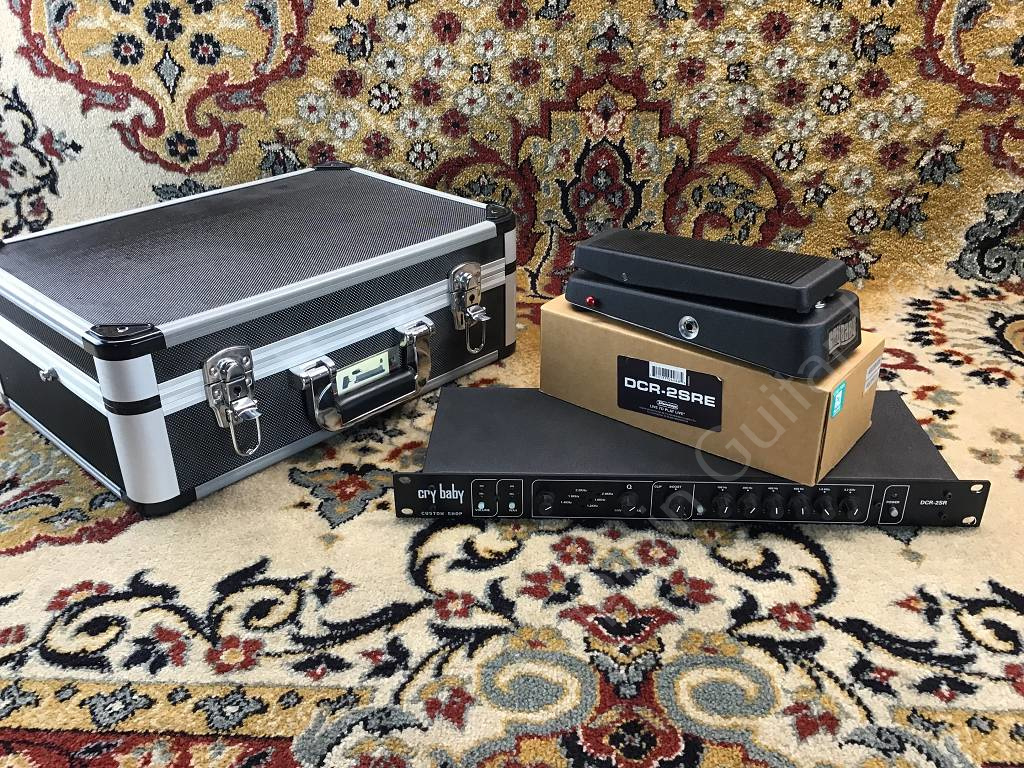

Dunlop – Cry Baby Rack Wah DCR-2SR – incl. DCR-1FC Foot Controller – ID 5505

From the Dunlop Custom Shop comes the DCR-28R Cry Baby Module Rack - the professional wah pedal solution for large stages. The 19" rack unit offers 6 different wah modes, volume boost, adjustable Q frequency and an effective 6-band EQ. Up to 6 optional controller pedals can be distributed around the stage so that a wah pedal is always within reach during the stage show.

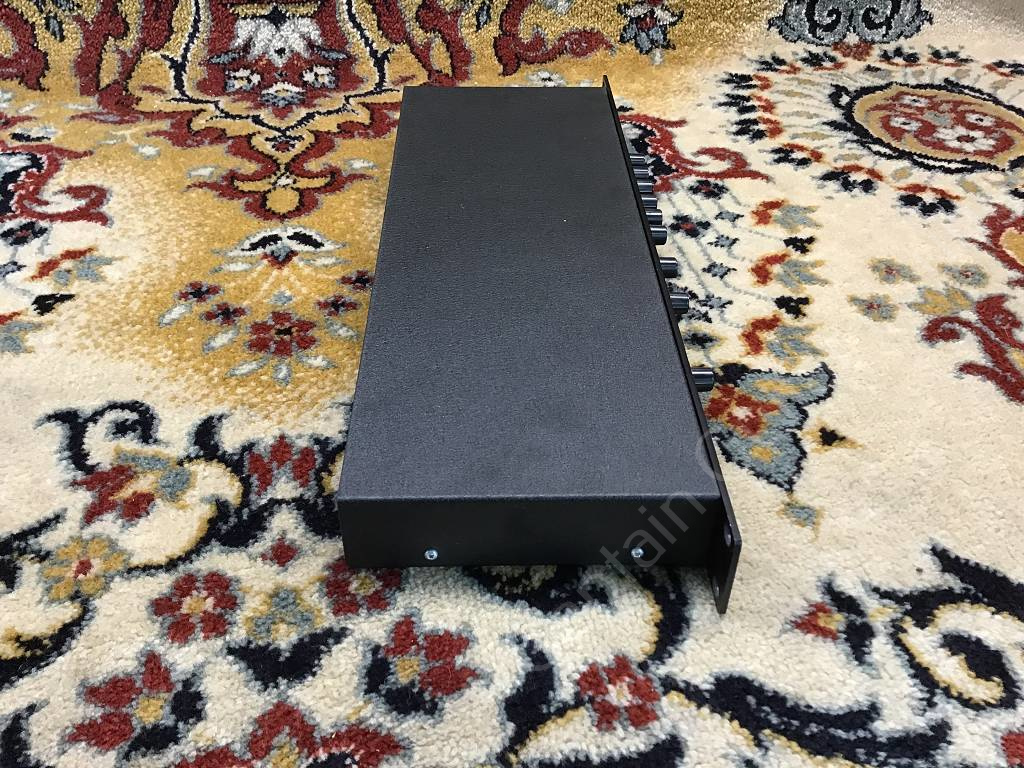

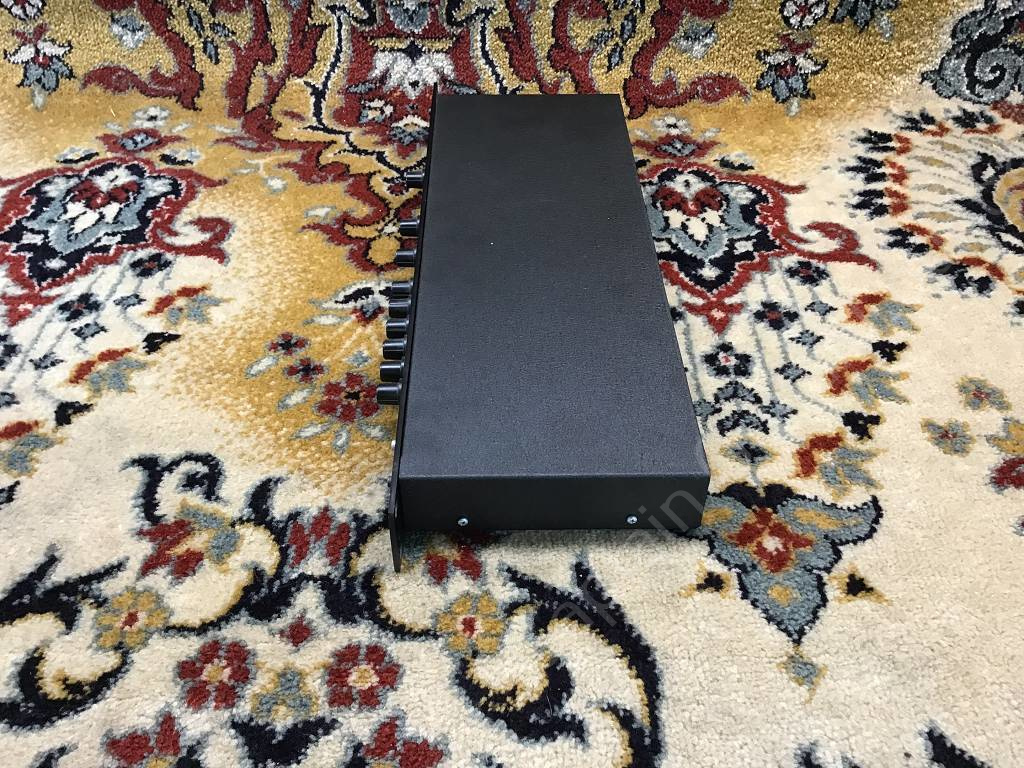

- Housing: 19" rack unit with 1U

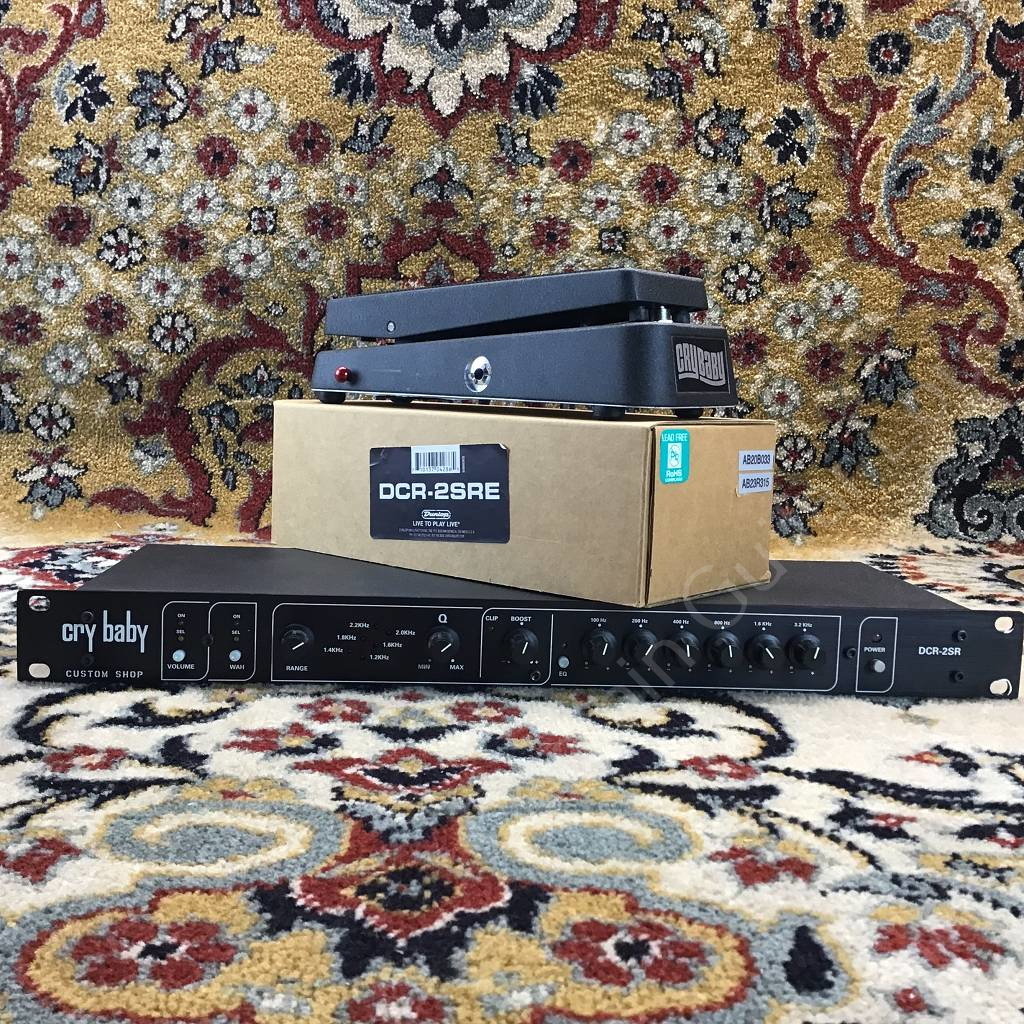

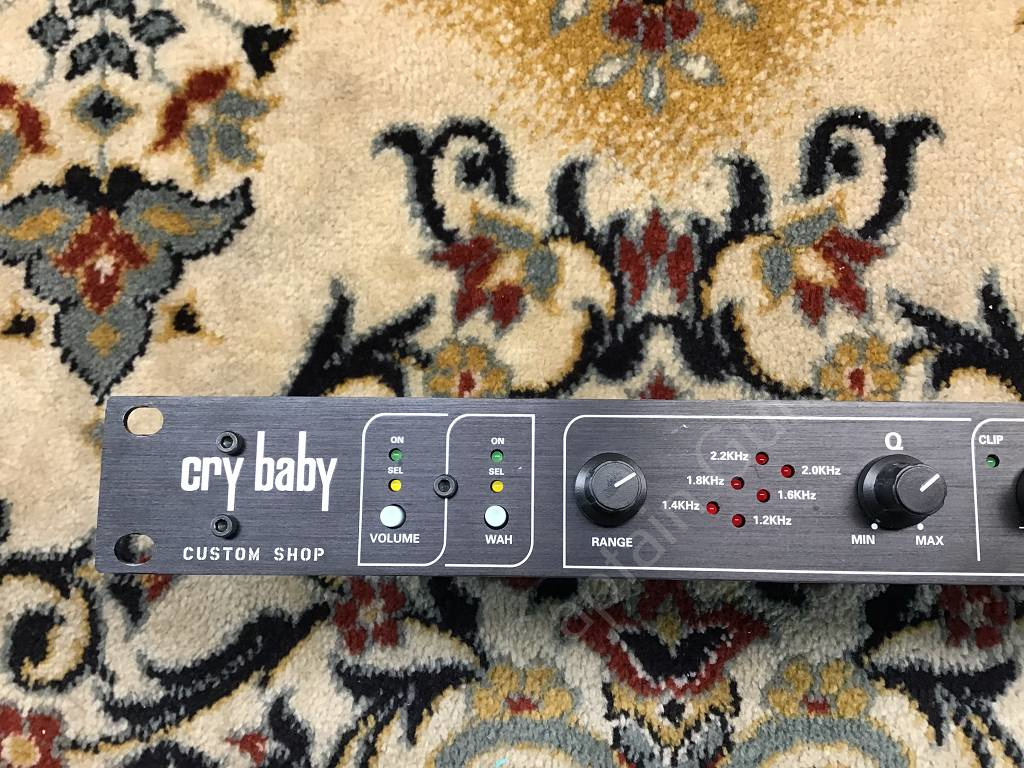

Front panel:
- Volume switch - selects the optional volume pedal.
- Wah switch - activates the wah effect
- Six-stage range control - selects the frequency range for the wah effect.
- Q control - adjusts the frequency range of the effect, from narrow and sharp to wide and subtle.
- Boost control - adjusts the preset volume increase (up to +10dB).
- The EQ switch selects a 6-band EQ, with each control providing +/-15 dB.

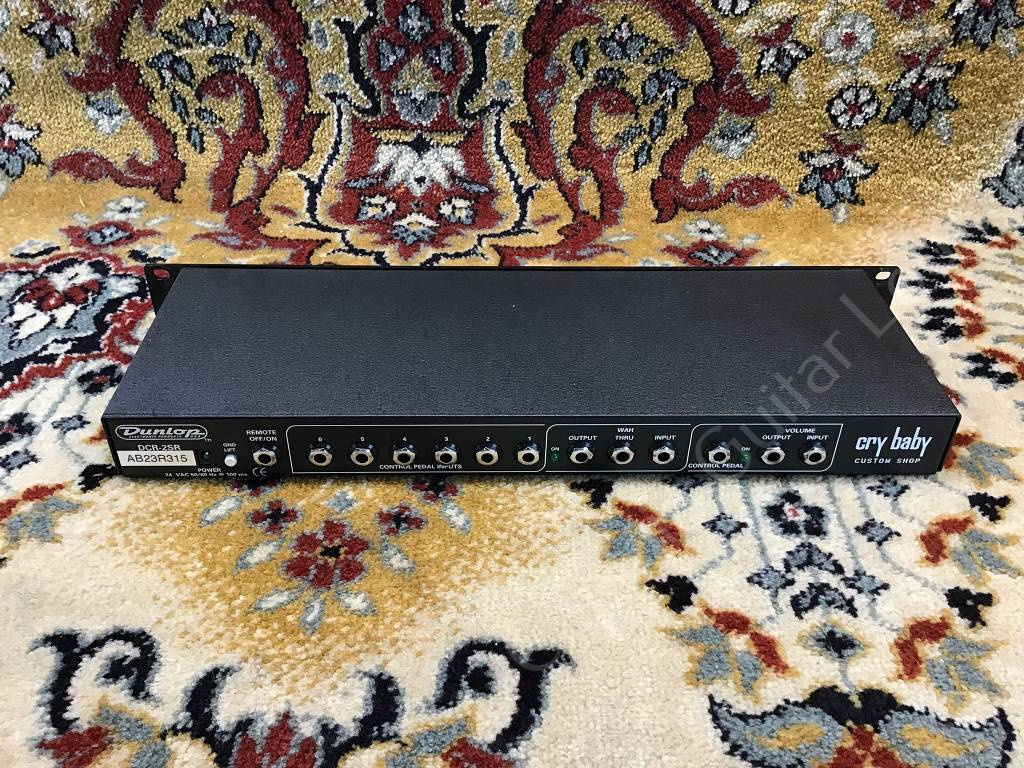

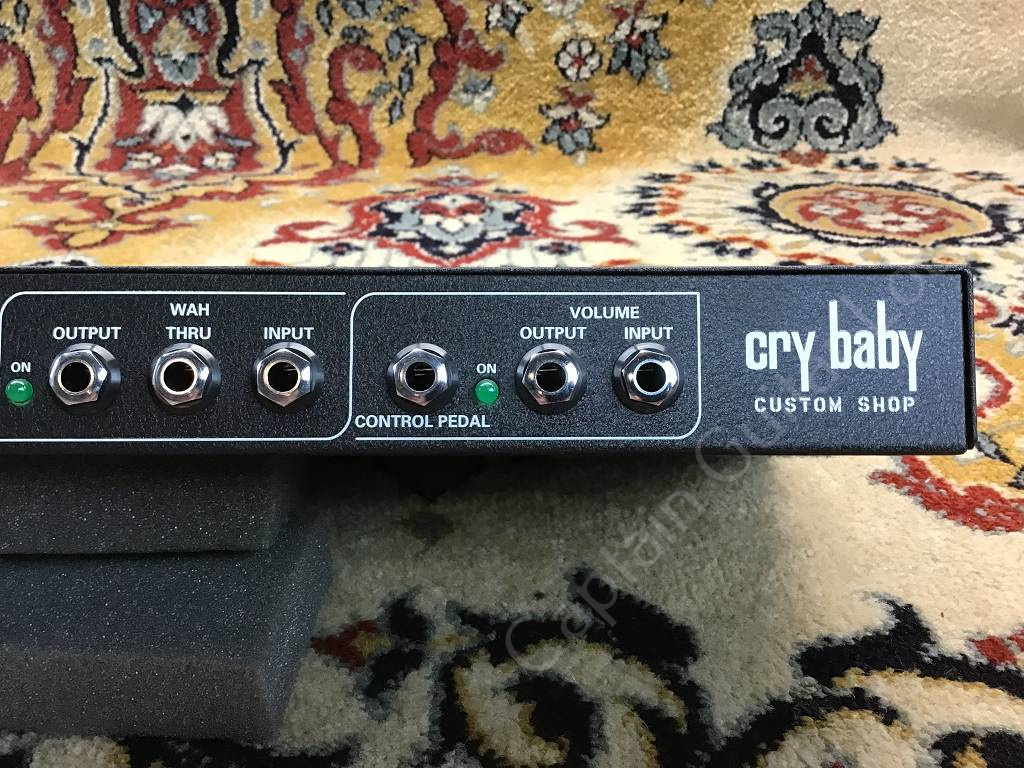

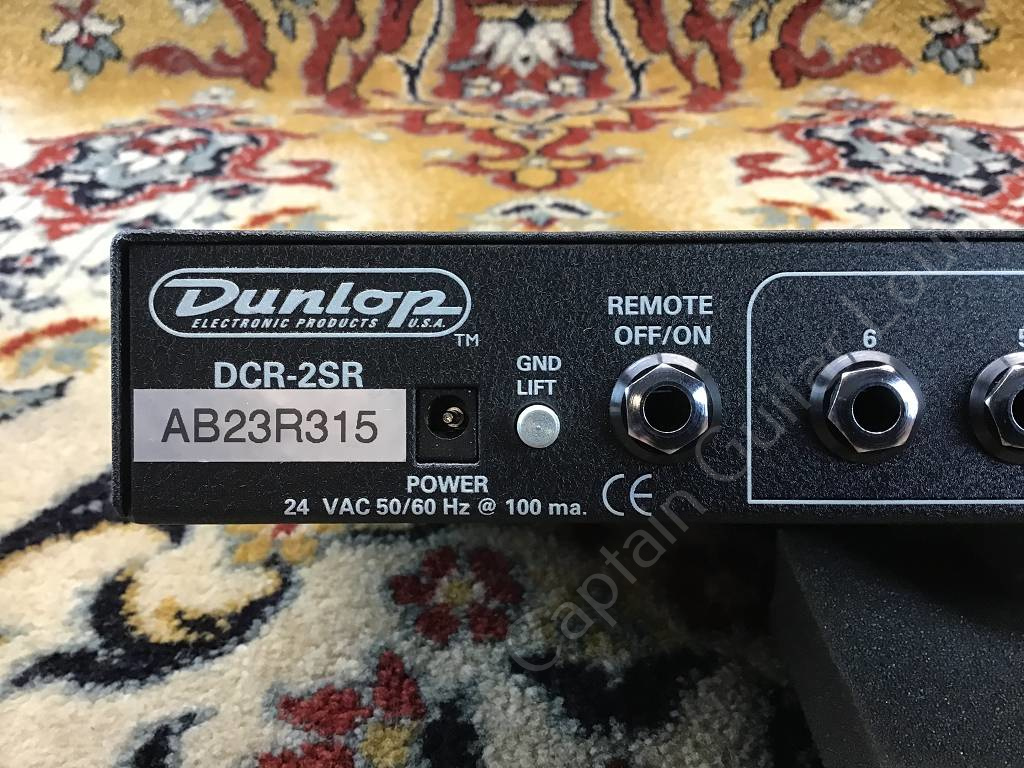

Back panel:
- Ground lift switch
- Socket for remote on/off switch

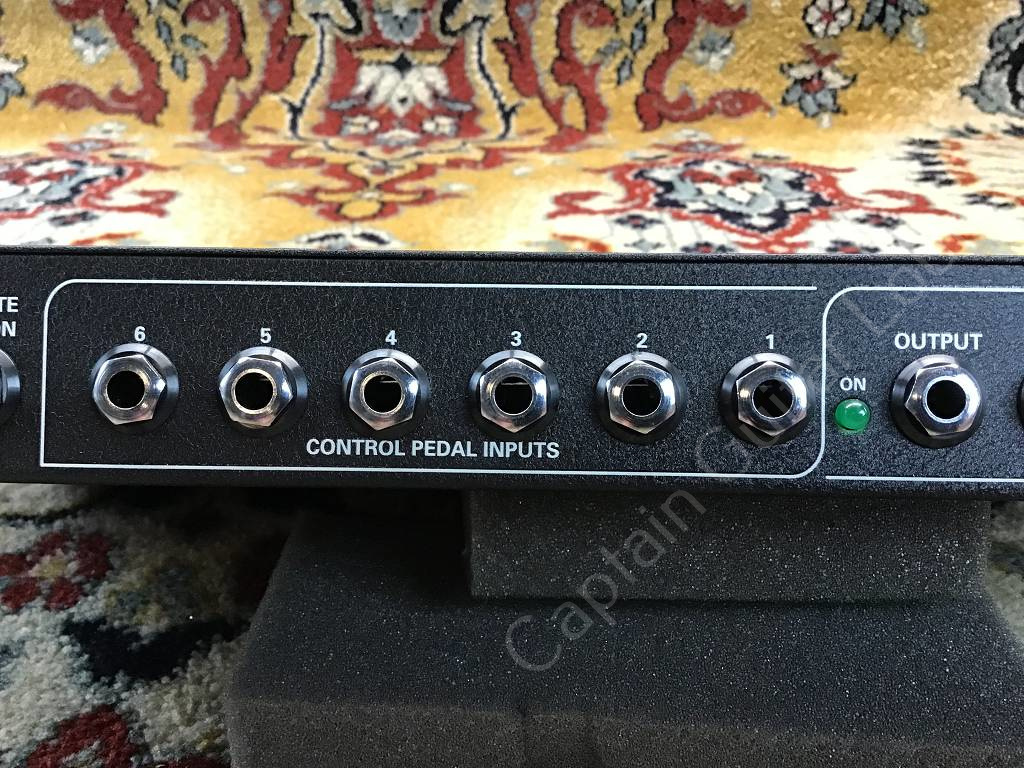

- Control pedal input sockets
- Output socket connects to the amplifier
- Wah Thru socket passes through dry, unaffected signal
- Input socket for connection to the guitar
- Control pedal, input and output sockets for optional volume pedal

- Rack unit weight: 2273 grams

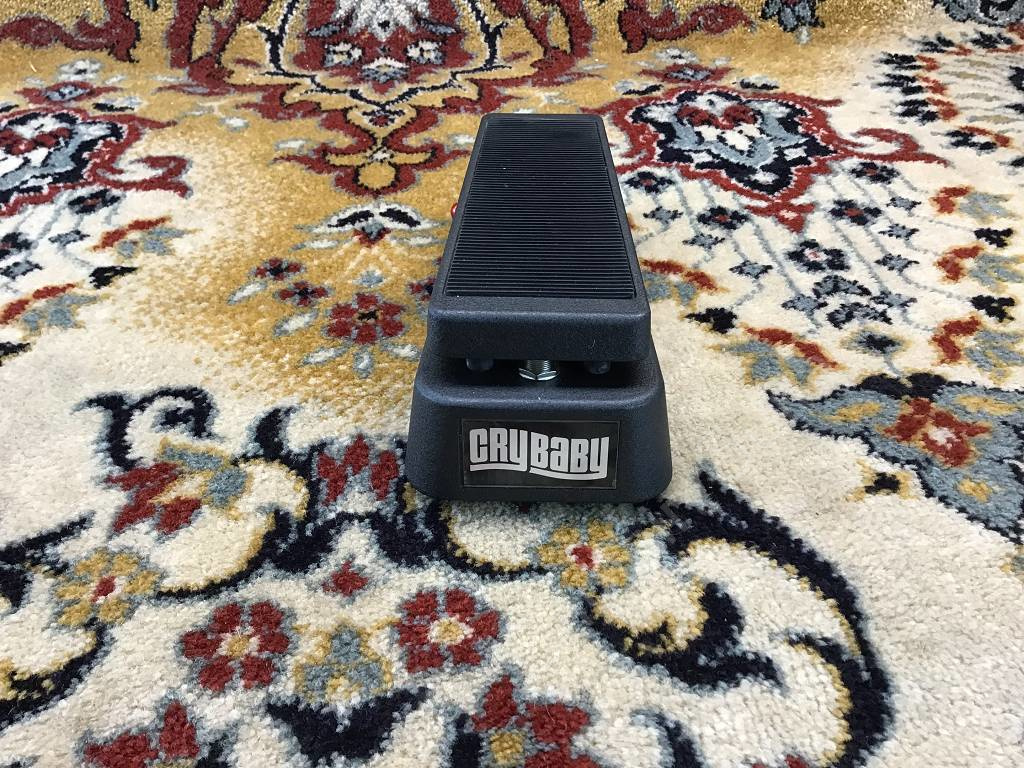

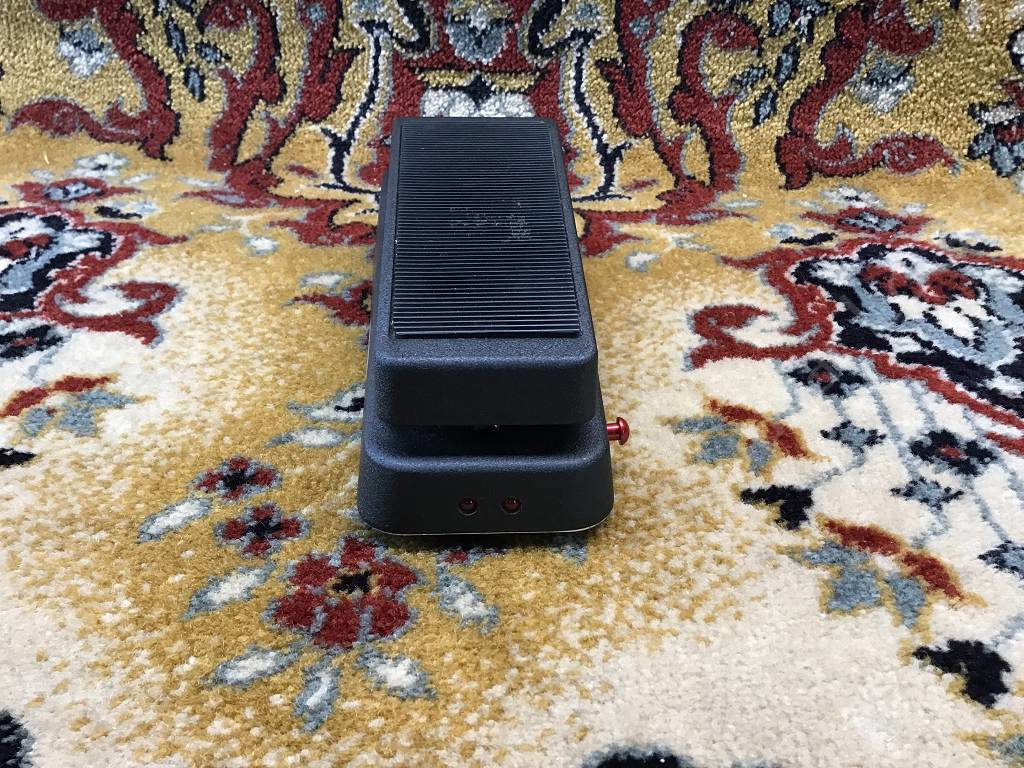

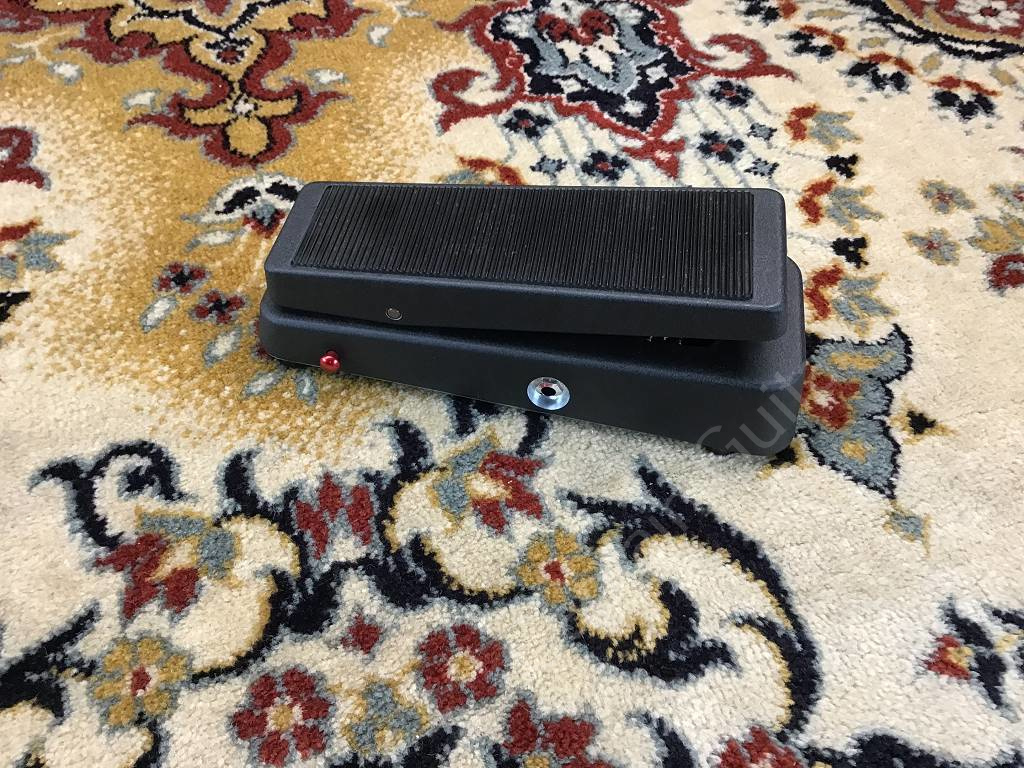

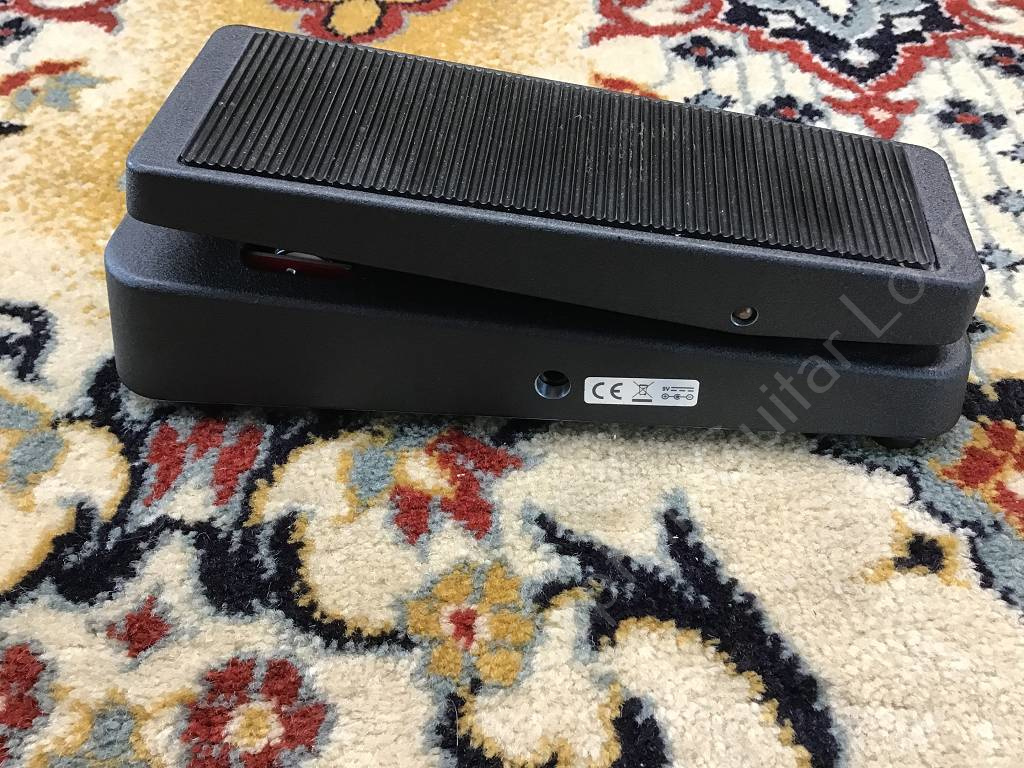

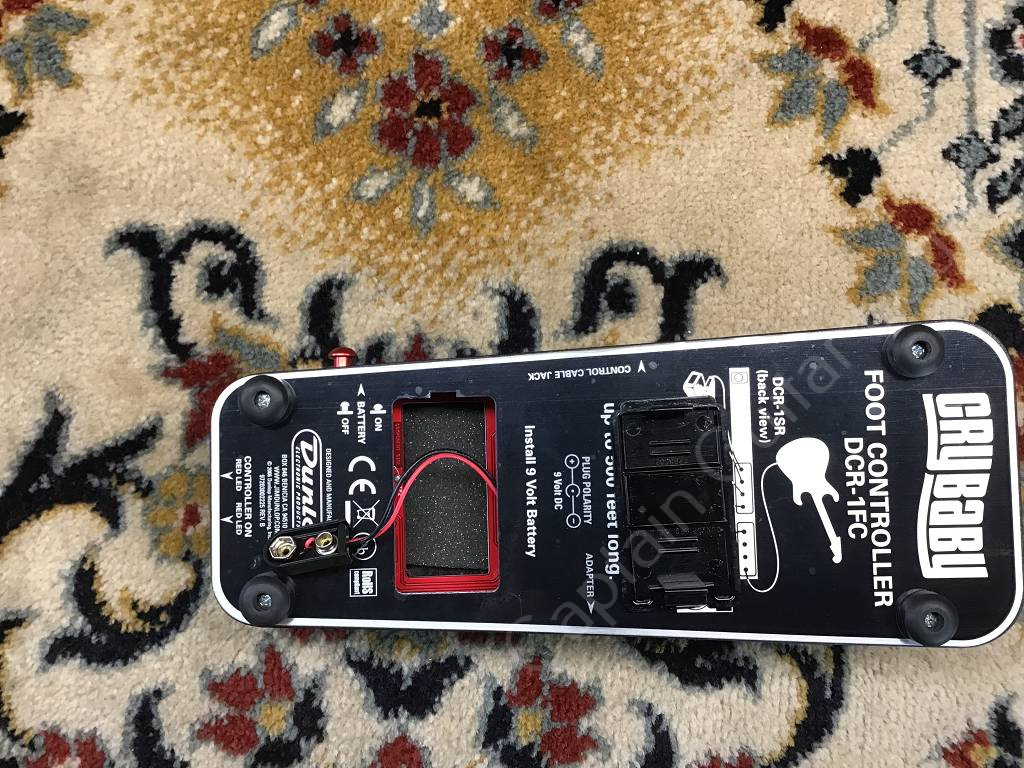

- Foot controller weight: 1484 grams
- Total weight: 7536 grams
