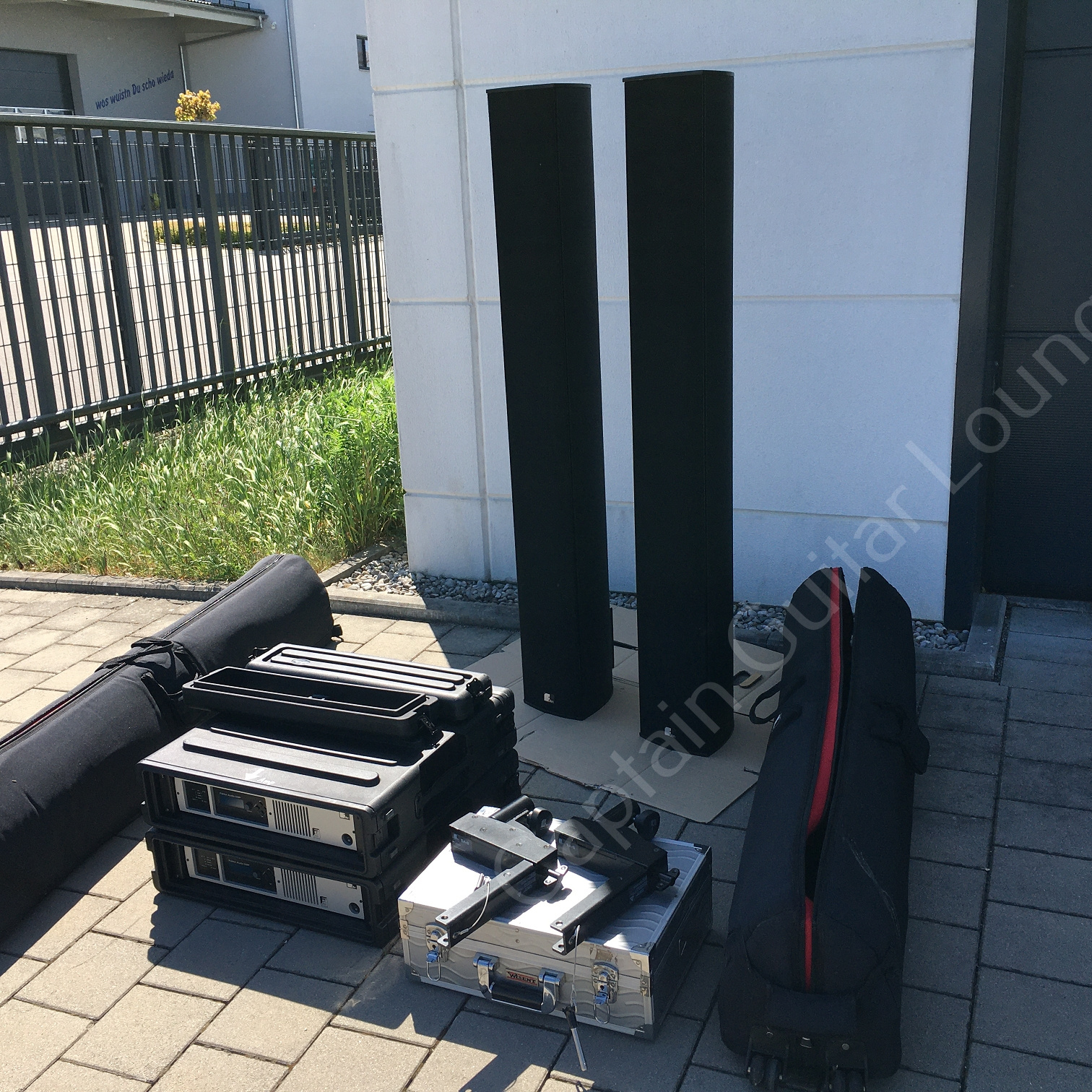

Fohhn – 2x D-2.1500 and 2x LX601 – PA – ID 5864

Fohhn PA

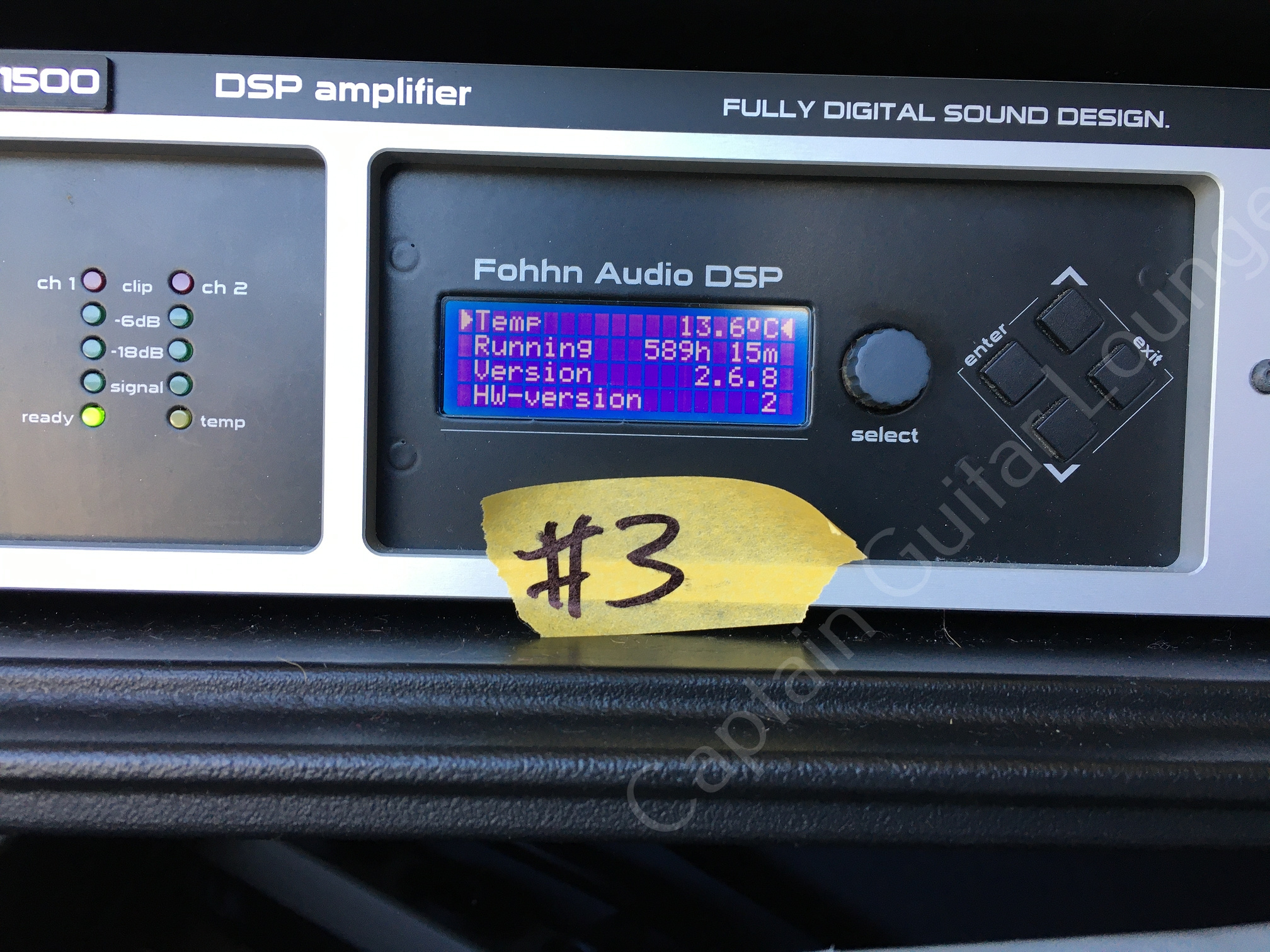

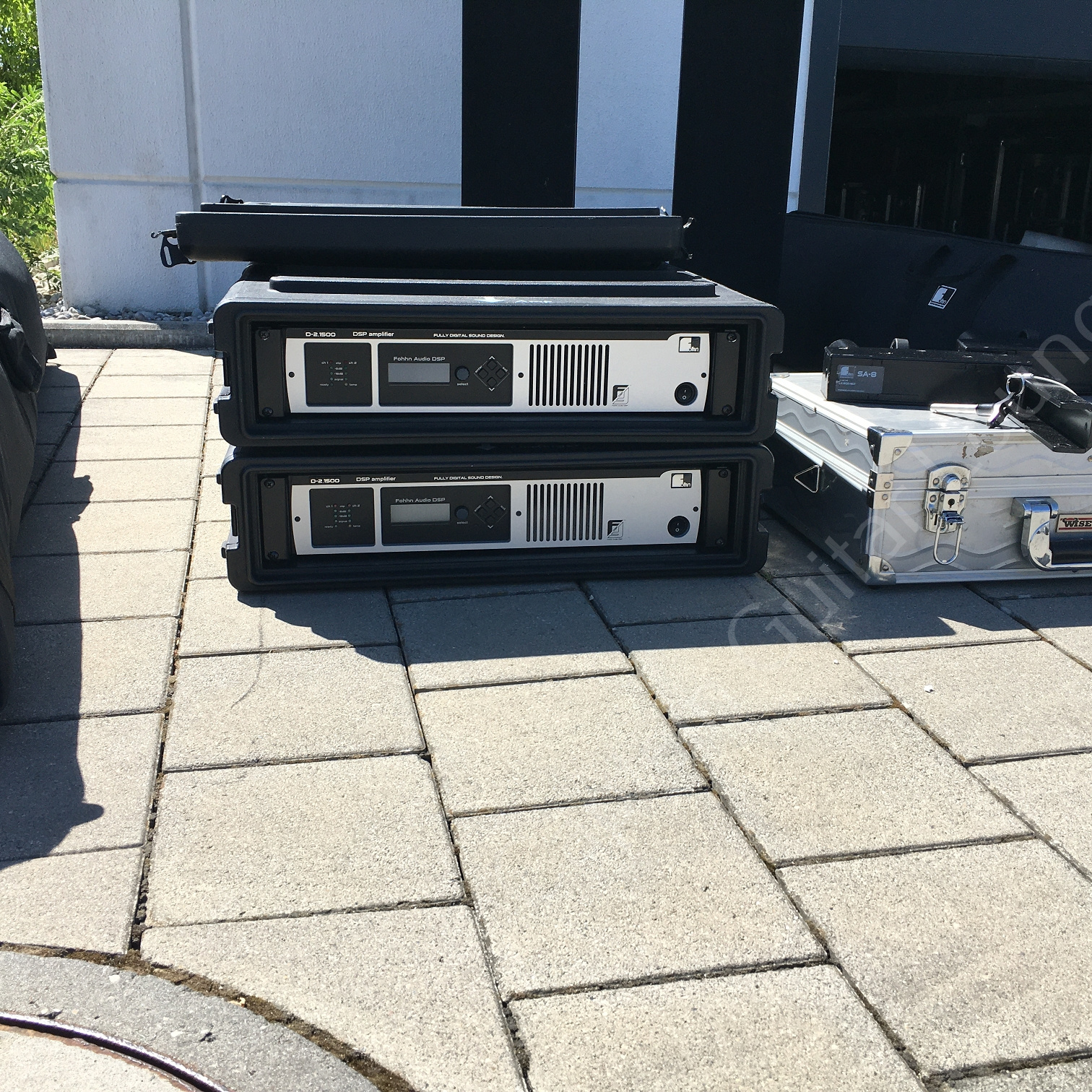

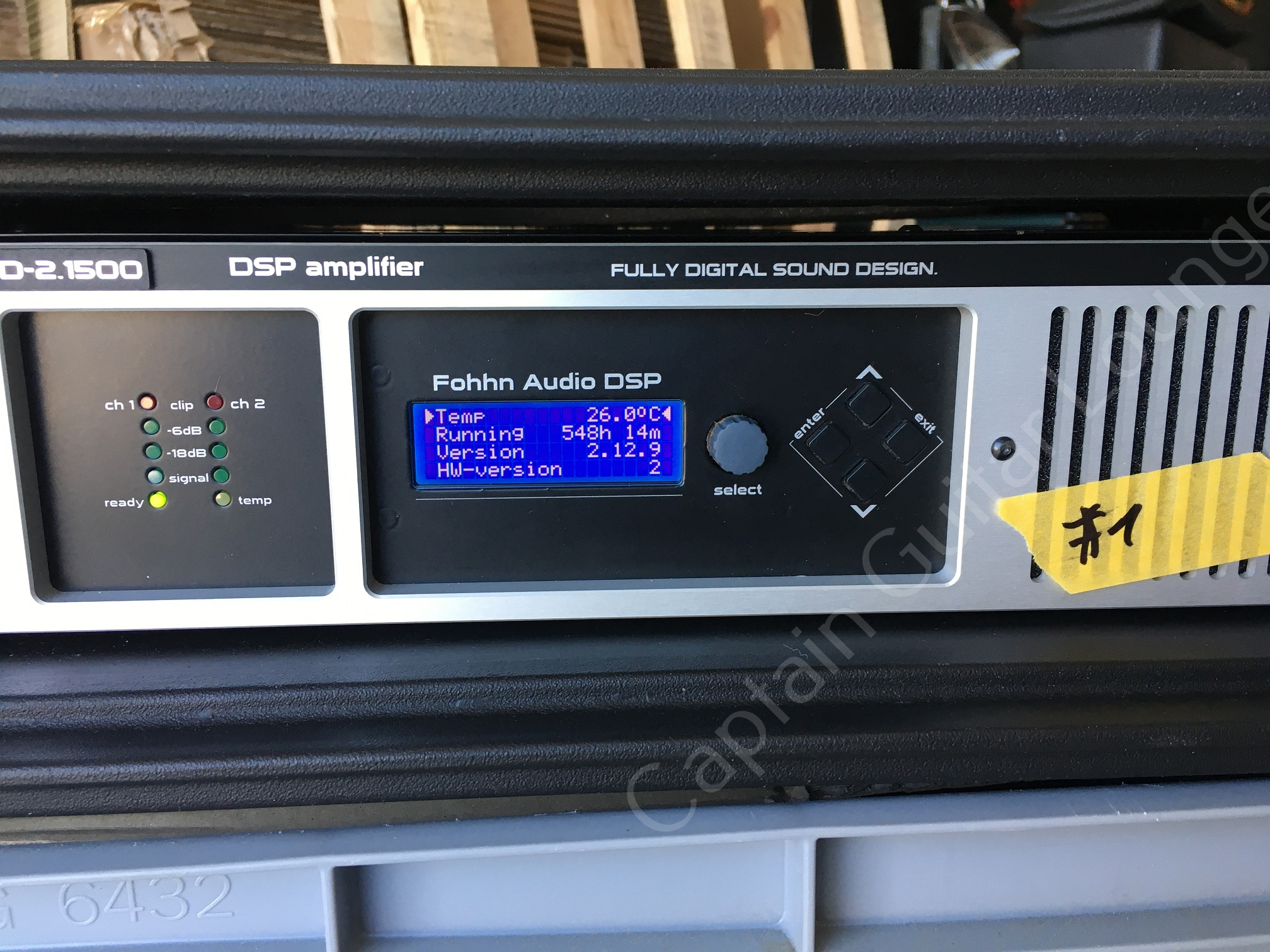

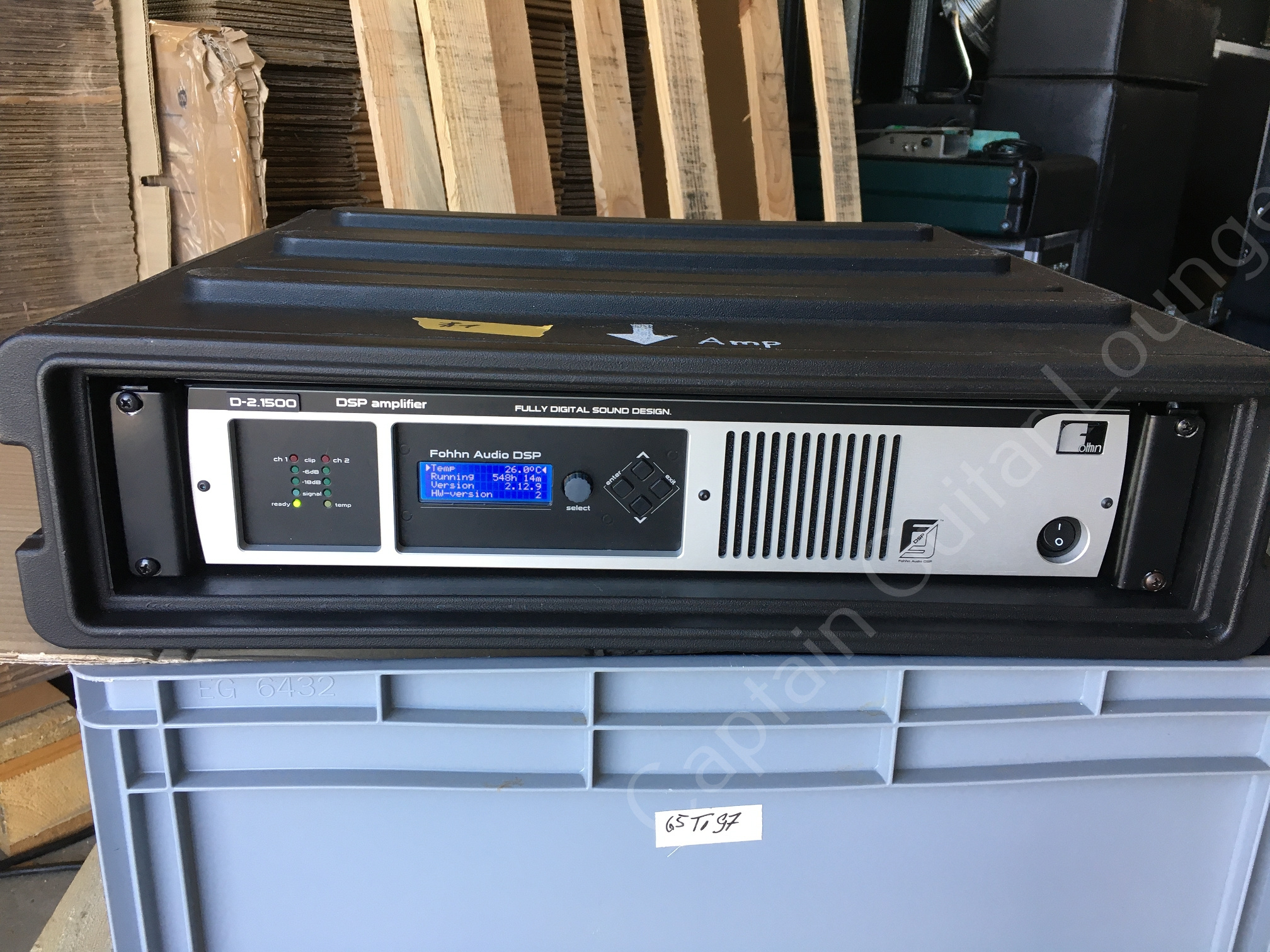

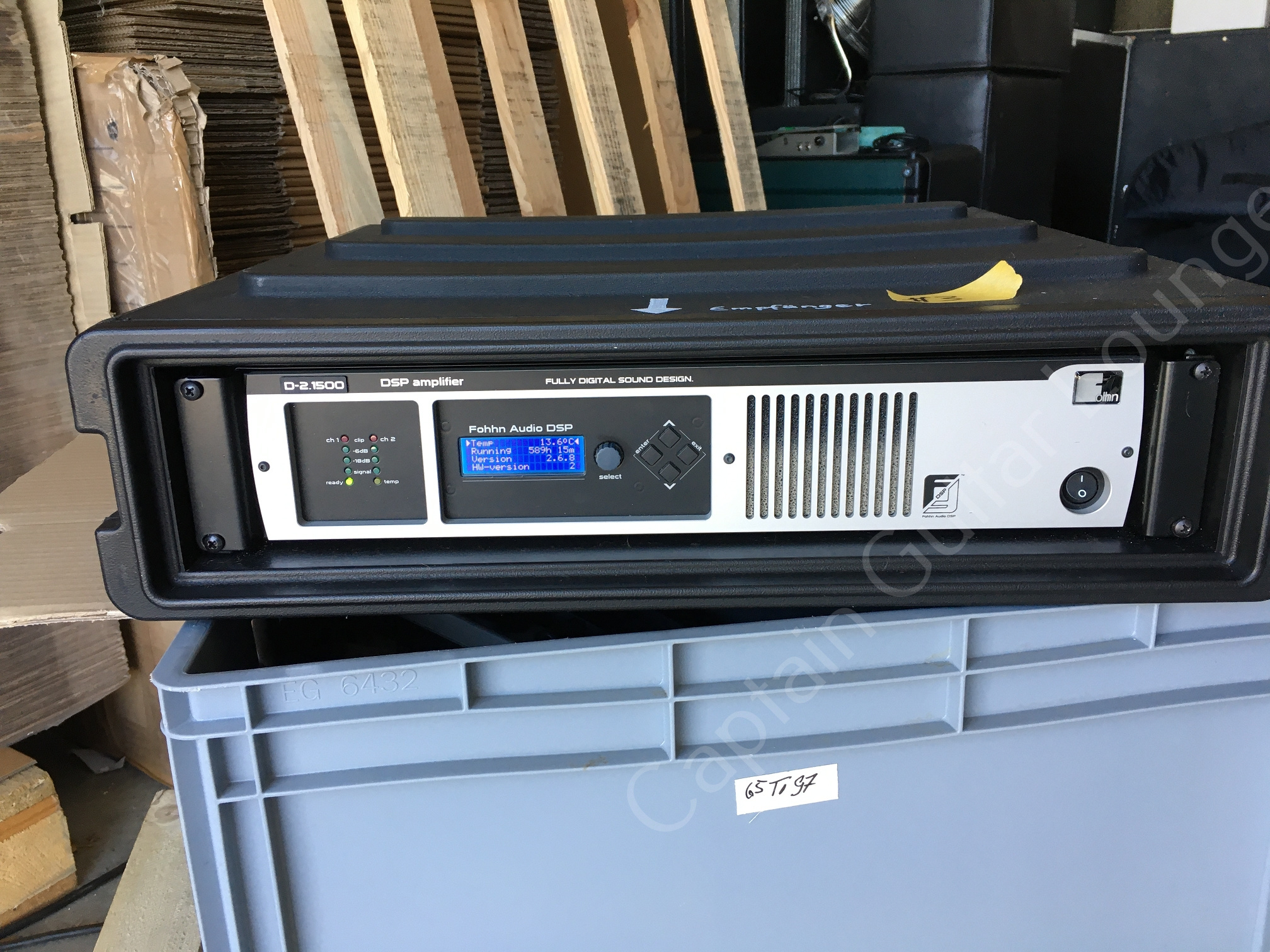

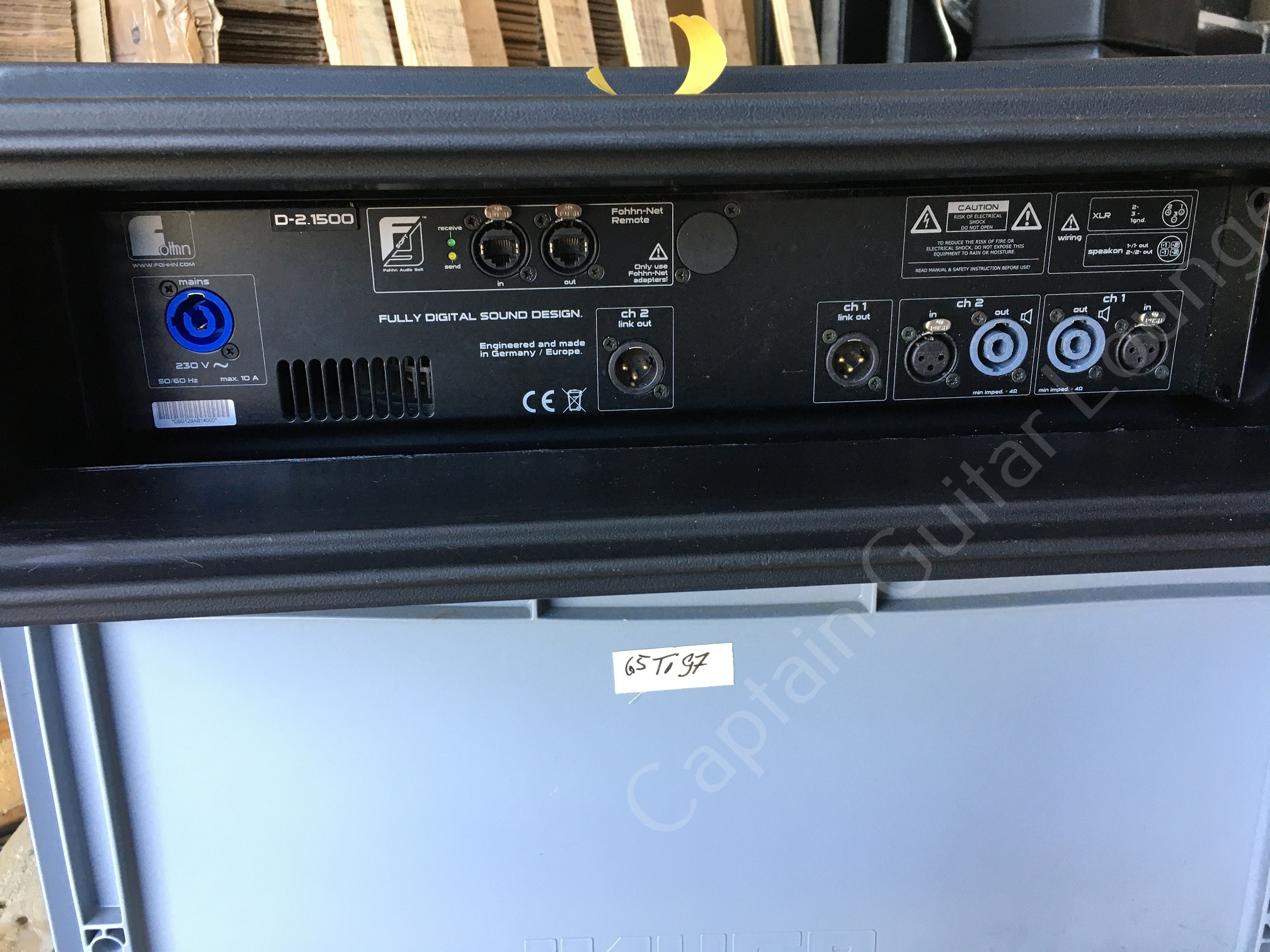

2 Fohhn D-2.1500 DSP Digital Power Amplifiers
State-of-the-art CLASS D power amplifier technology
Integrated Fohhn DSPs guarantee optimal sound performance
5 top-of-the-line audio devices, such as a built-in parametric EQ
Integrated speaker database for optimal operational reliability
Remote-controlled, remotely monitored, network-enabled
Minimal heat generation, extremely quiet fans
Technical data
Amplifier Technology: Class D
EIA Output Power: 2x 1500 W / 4 ohms; 2x 900 W / 8 ohms; (1 kHz, THD+N < 1%, 230 V AC)
Minimum load impedance: 4 ohms

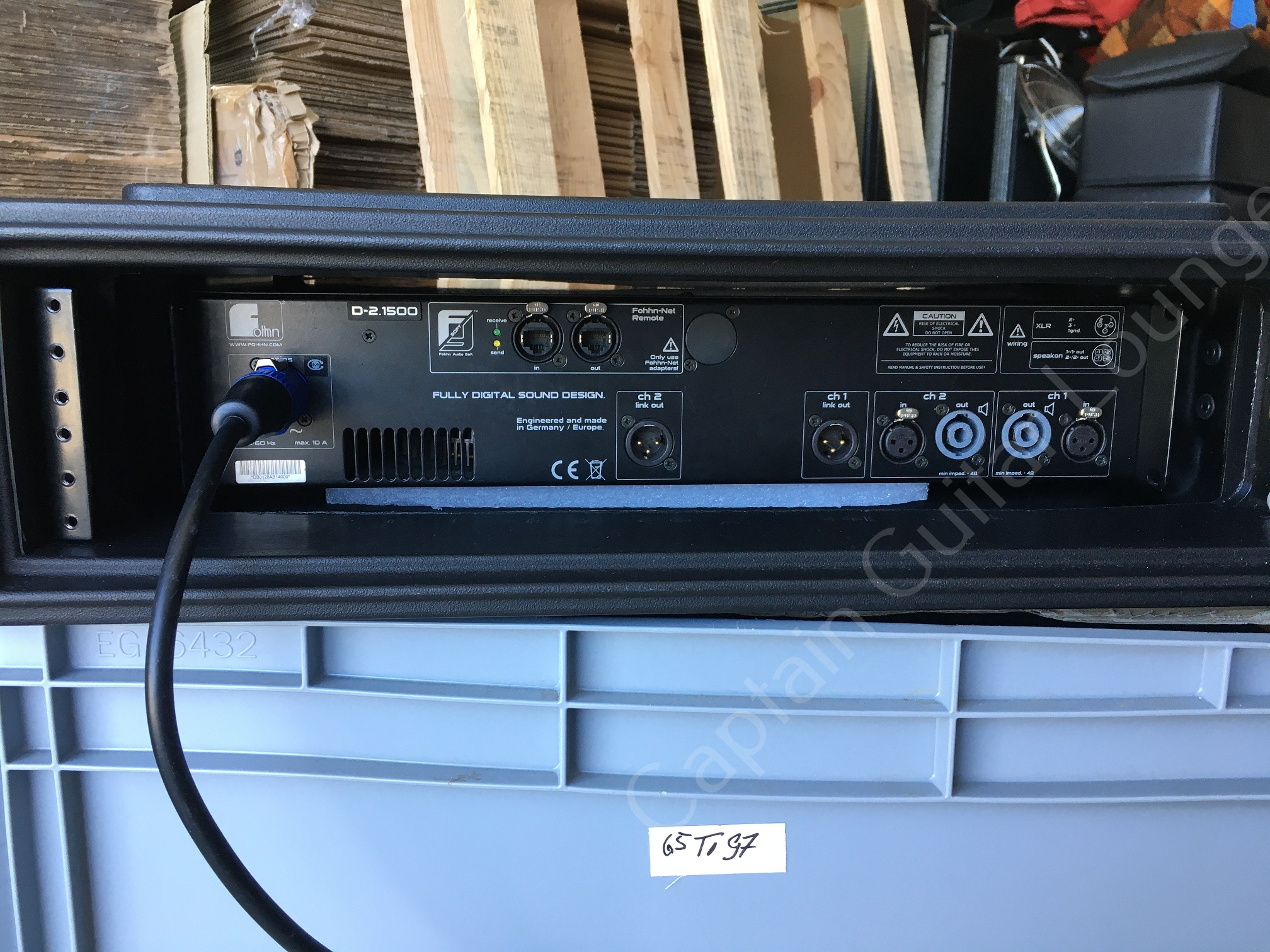

Outputs: 2
Inputs: 2
DSP channels, Fohhn Audio DSP: 2
Gain: 35 dB
Input sensitivity: 1.4 V
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio: >105 dB/A
Protection circuits: Soft start, overtemperature, short circuit, overload
Remote Control: Fohhn-Net, Fohhn Audio Soft

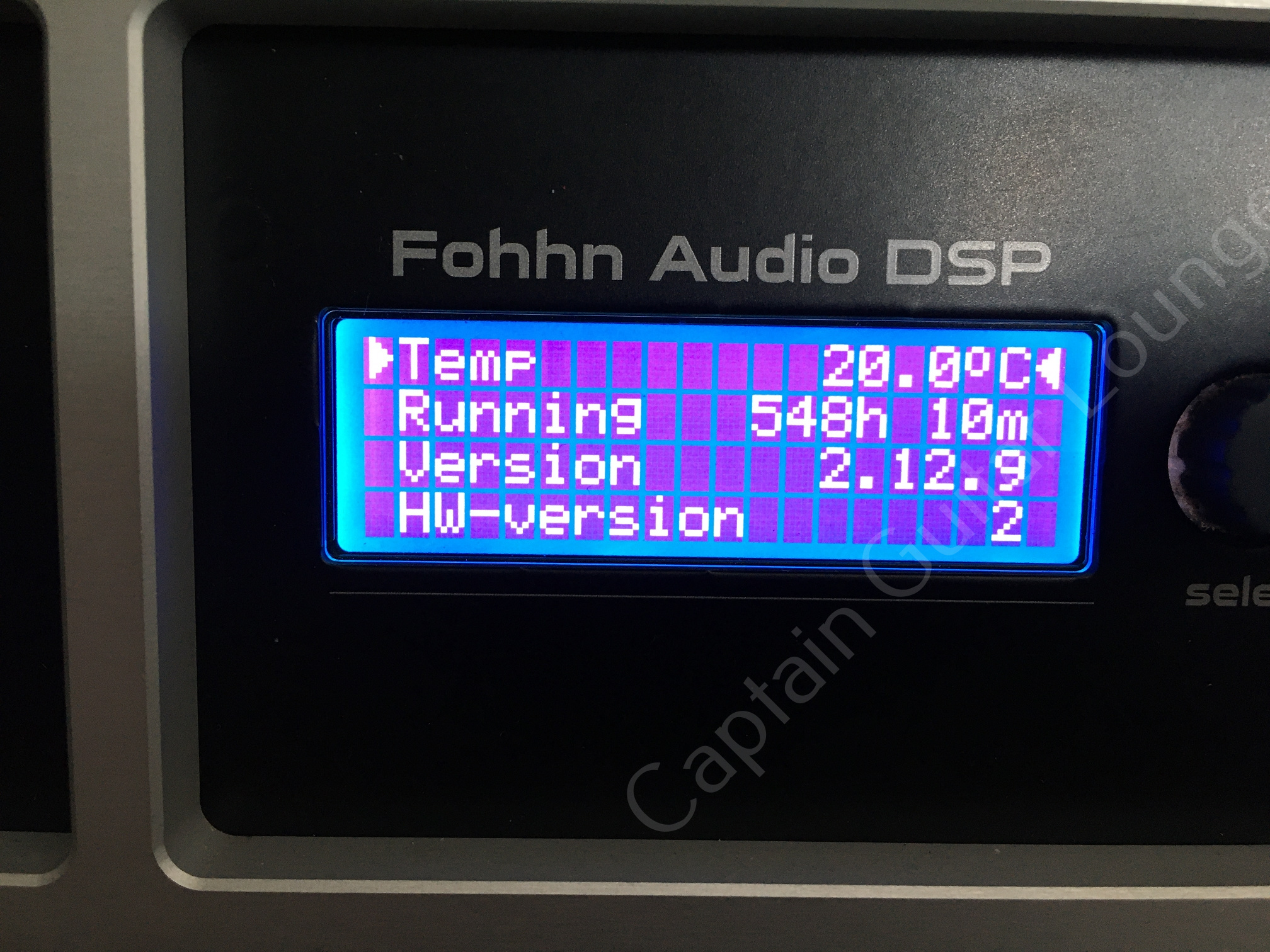

Remote Monitoring: Temperature, Protect, Signals

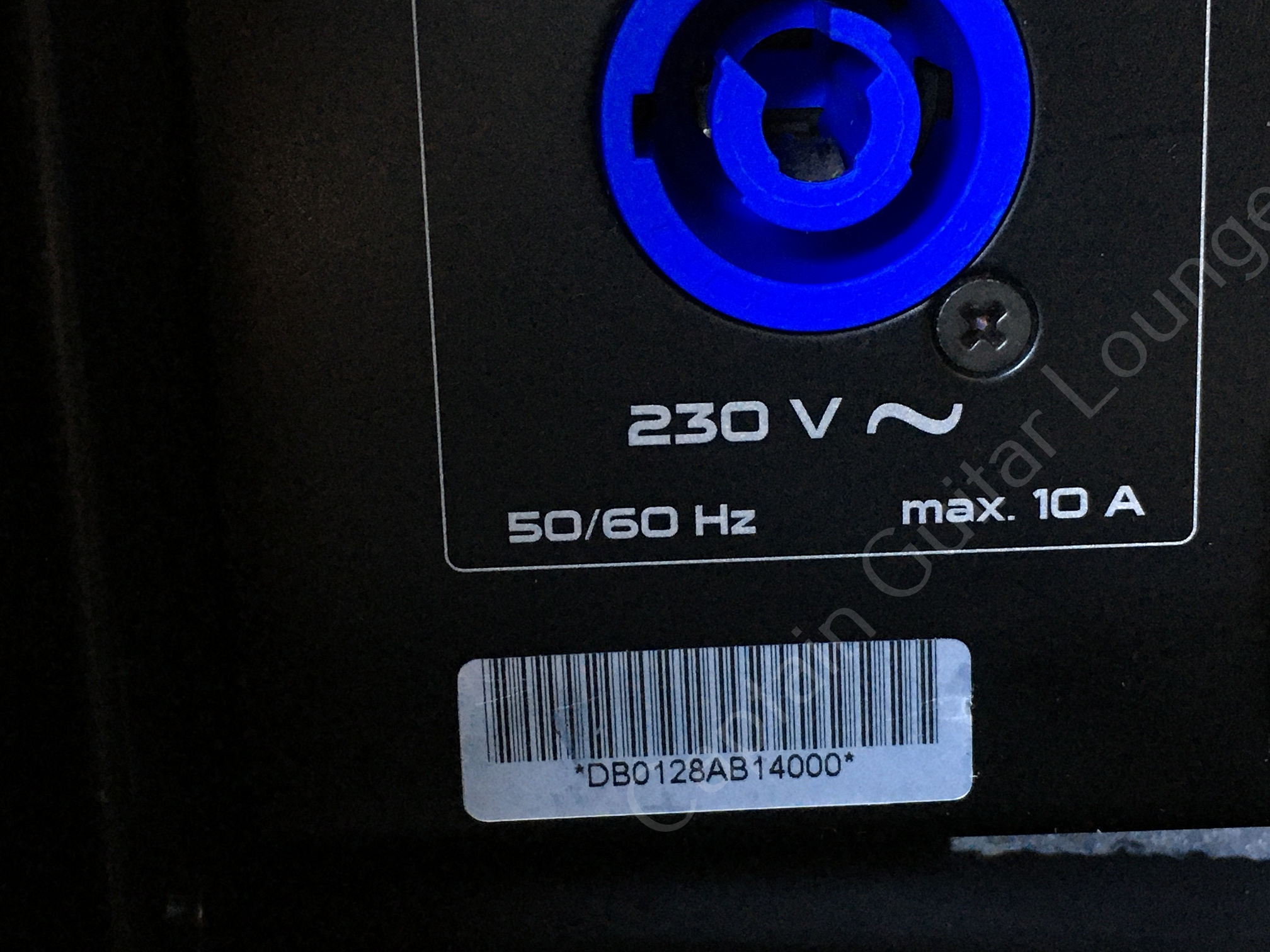

Power supply: AC 230 V, 195 V – 250 V AC 50/60 Hz, switching power supply
Temperature range: 0–45°C
Cooling: temperature-controlled fan
Dimensions (W x H x D): 2U, 88.9 x 483 x 380 mm
Weight: 10.1 kg

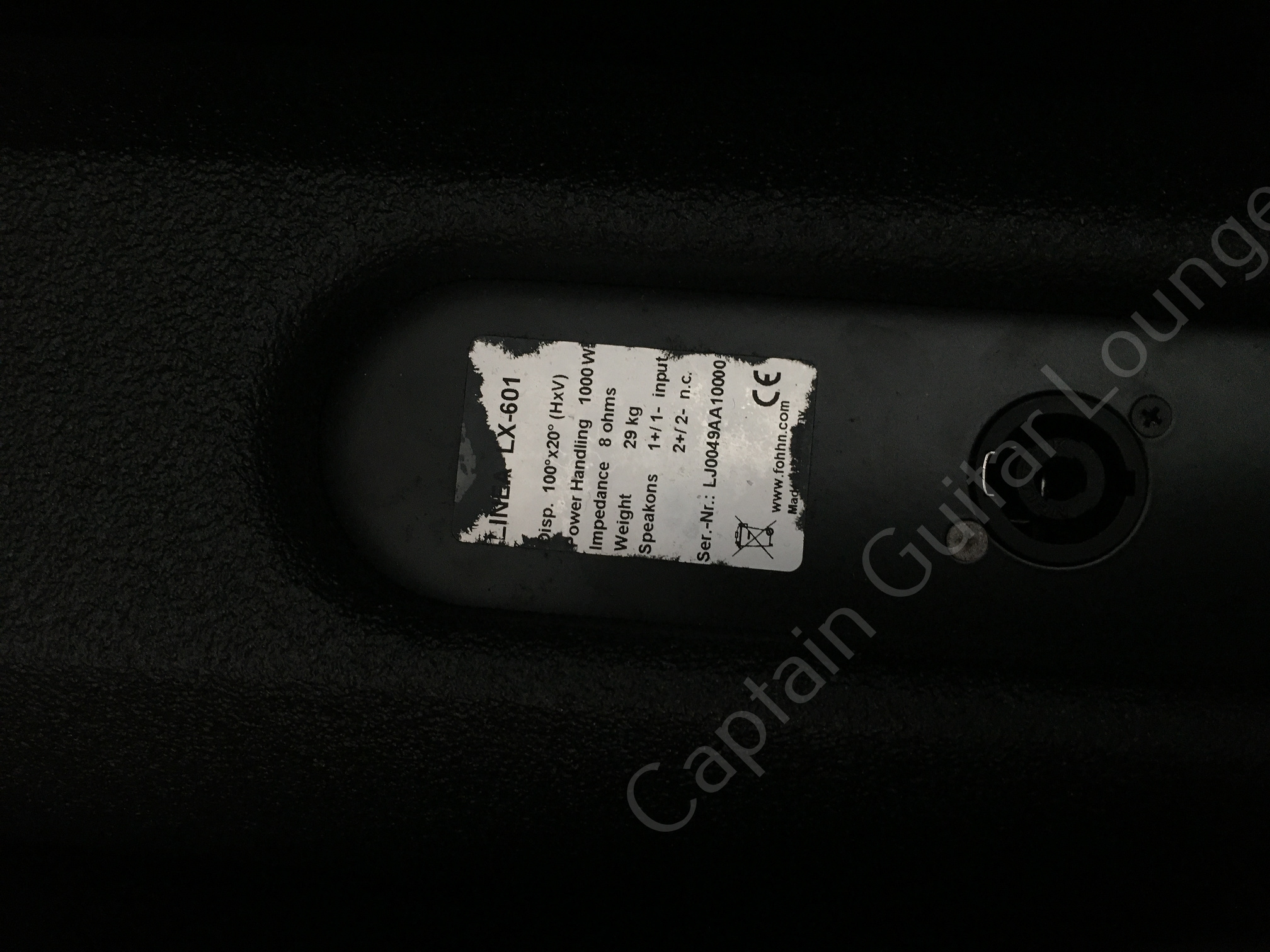

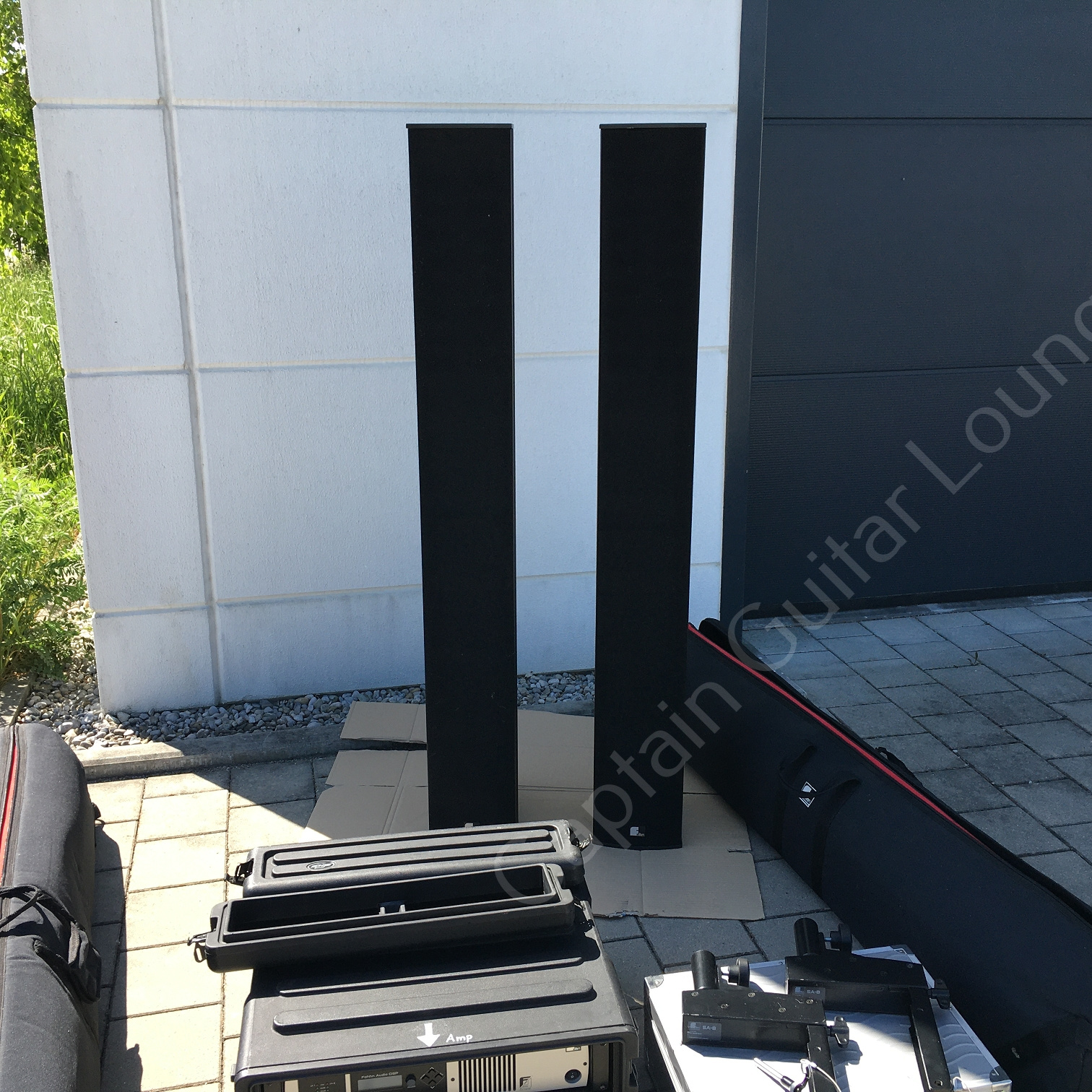

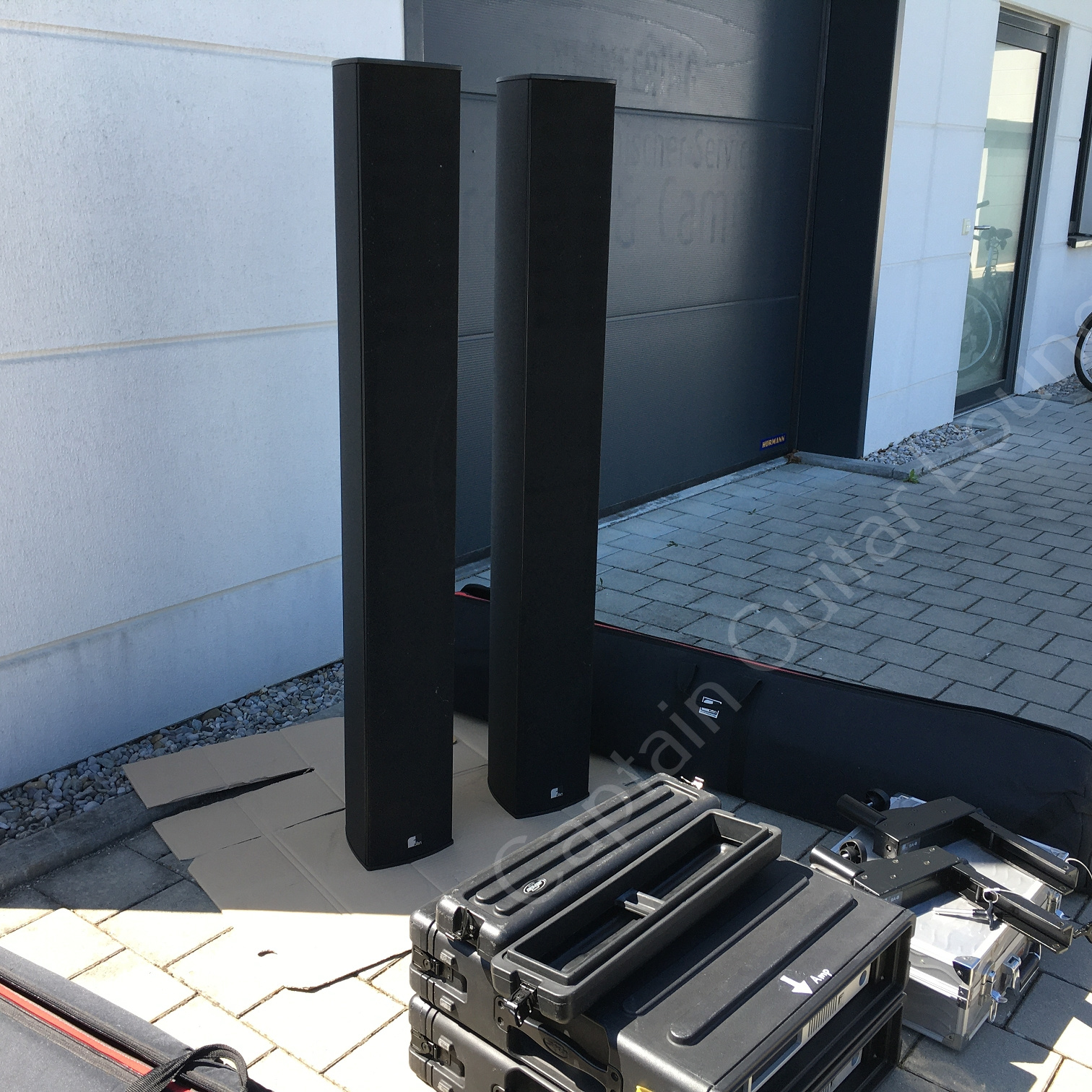

2 LX-601 Speaker Systems
6 × 6.5" long-throw woofers, 4 × 1" compression drivers on waveguides
Rated power capacity: 1,000 W
Beam pattern: 100° × 20° (H × V)
Maximum sound pressure level: 136 dB
High resistance to feedback

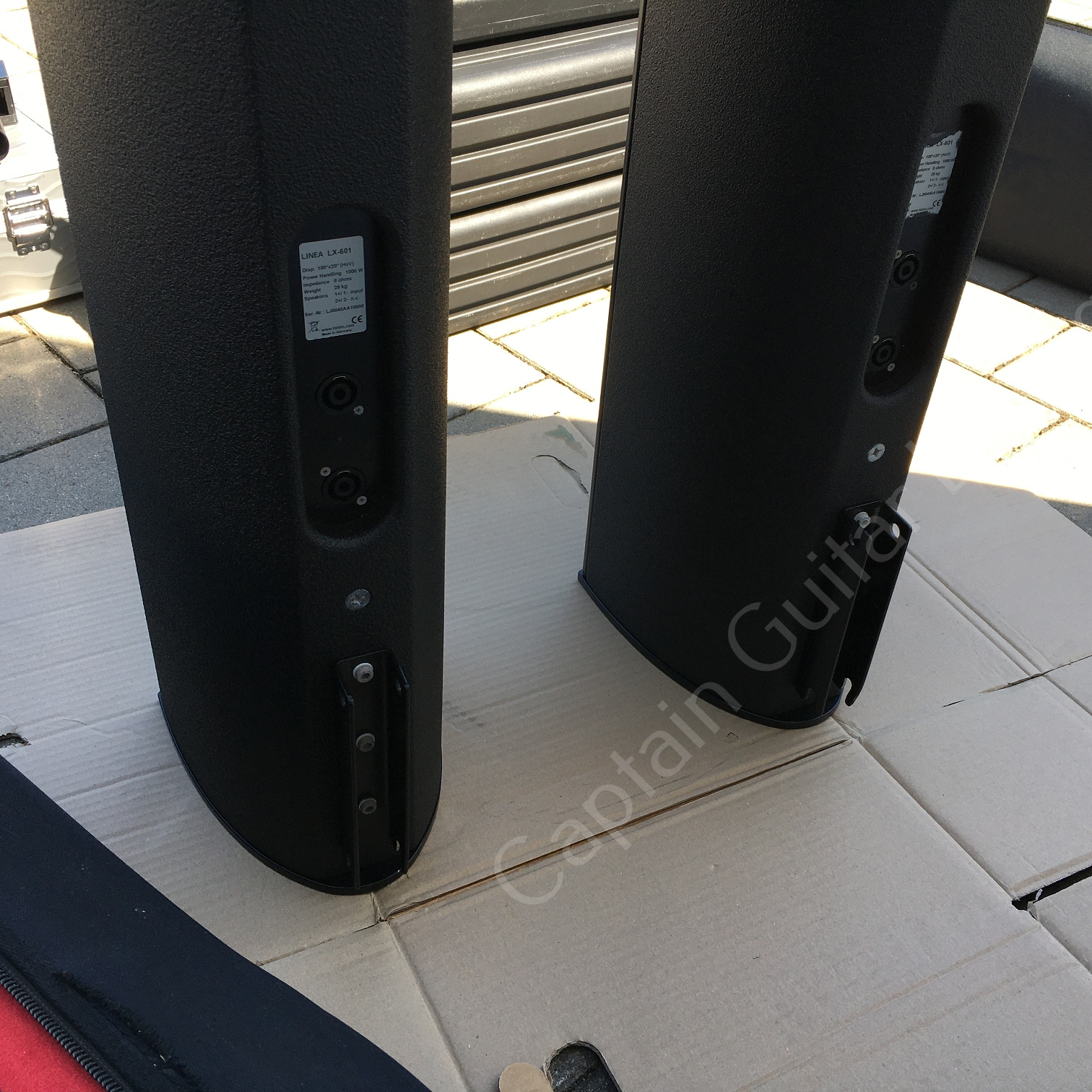

Connections: 2 × Speakon
High-quality wooden enclosure (birch plywood) with a PU coating
Available in RAL Classic, NCS, or Pantone colors upon request
Versatile Mounting and Flight Accessories
To ensure performance and operational reliability, Fohhn system power amplifiers, including Requires the correct speaker preset
Weight: 29 kg

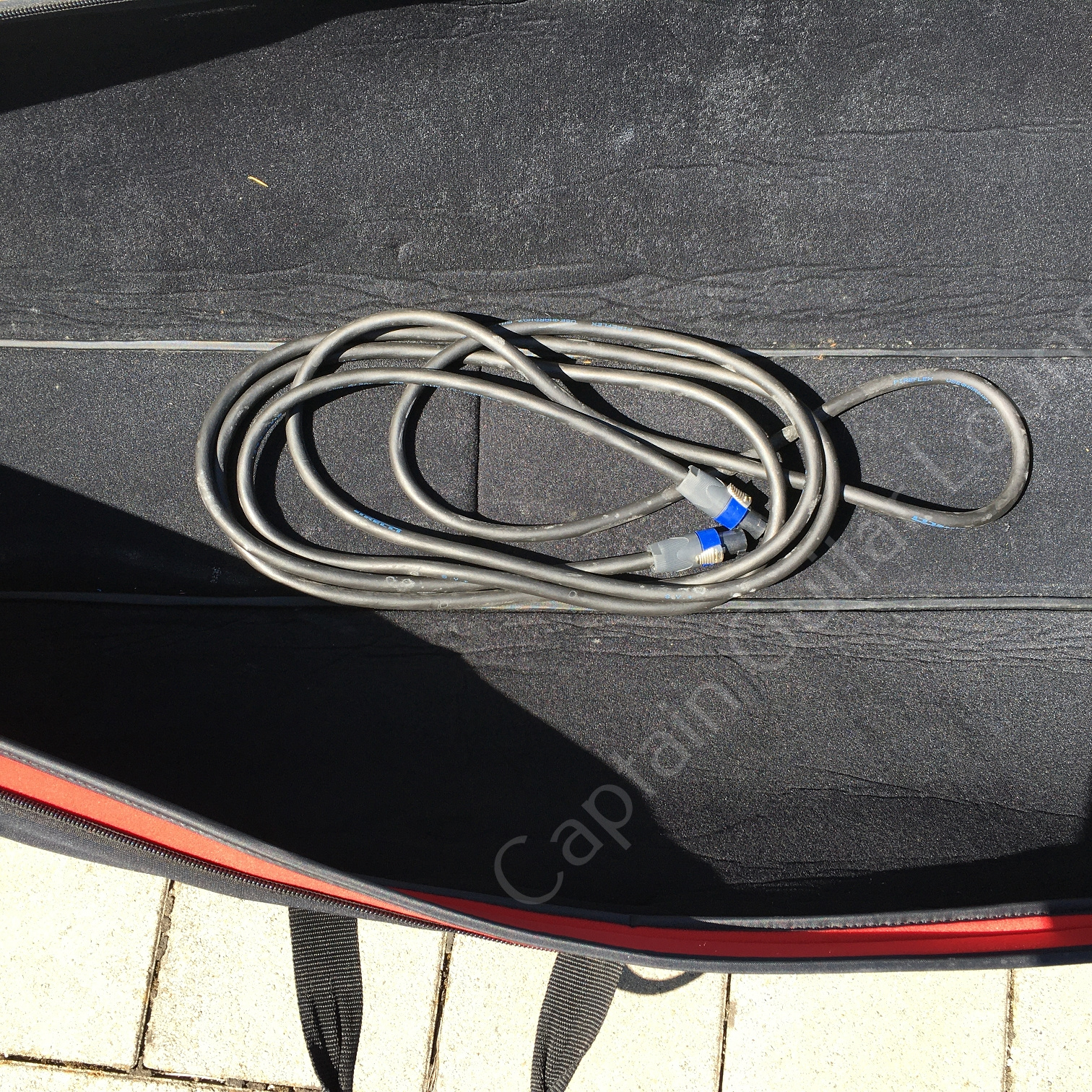

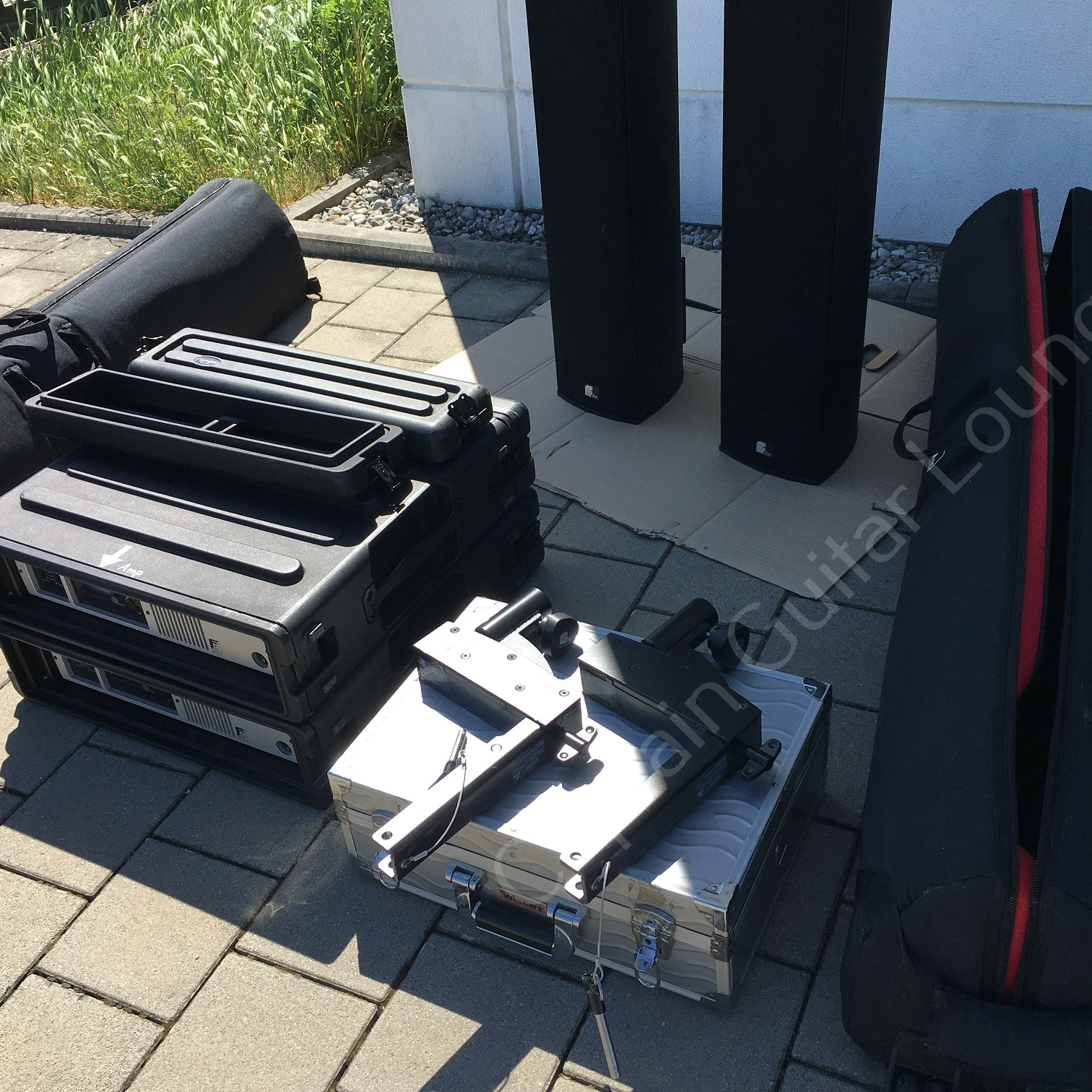

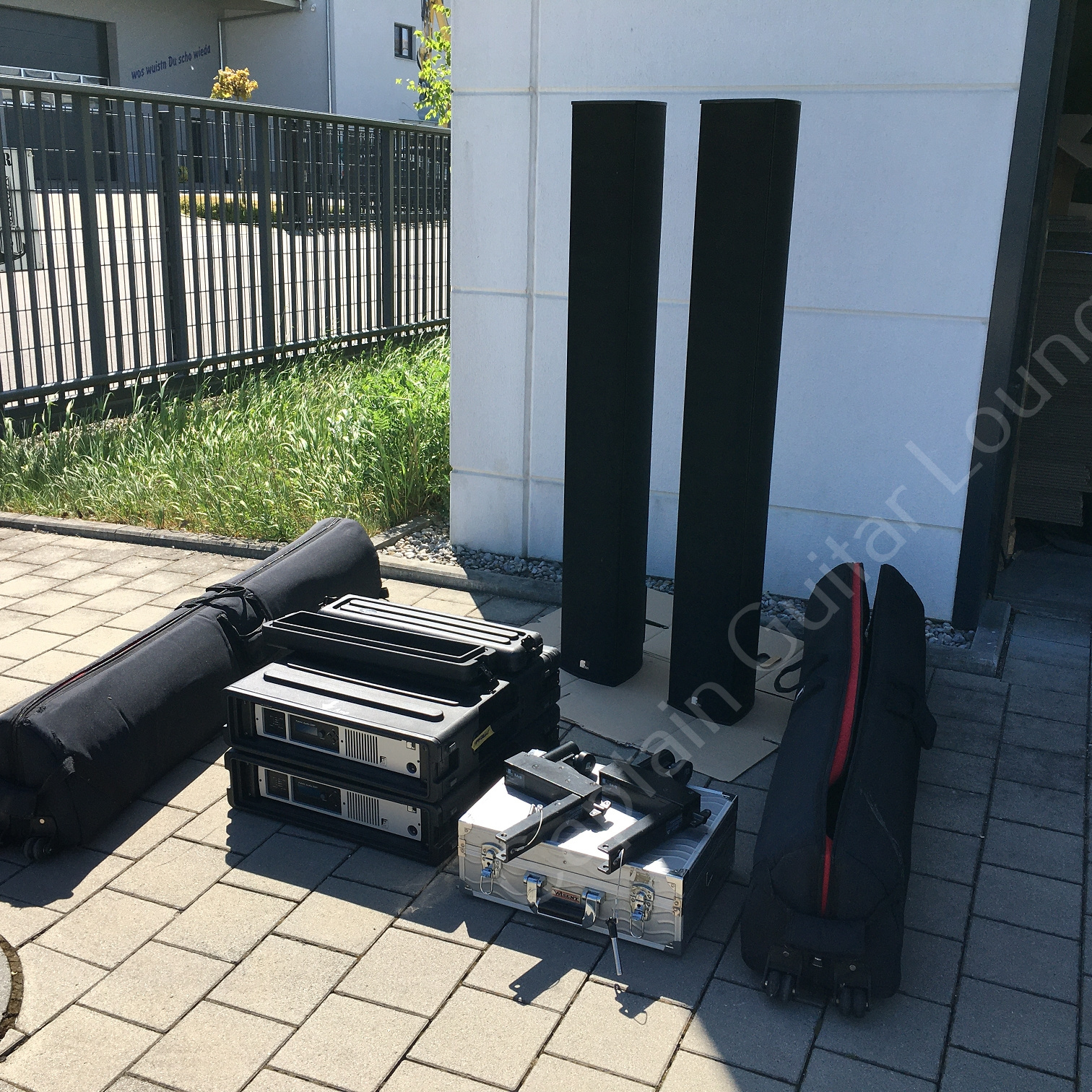

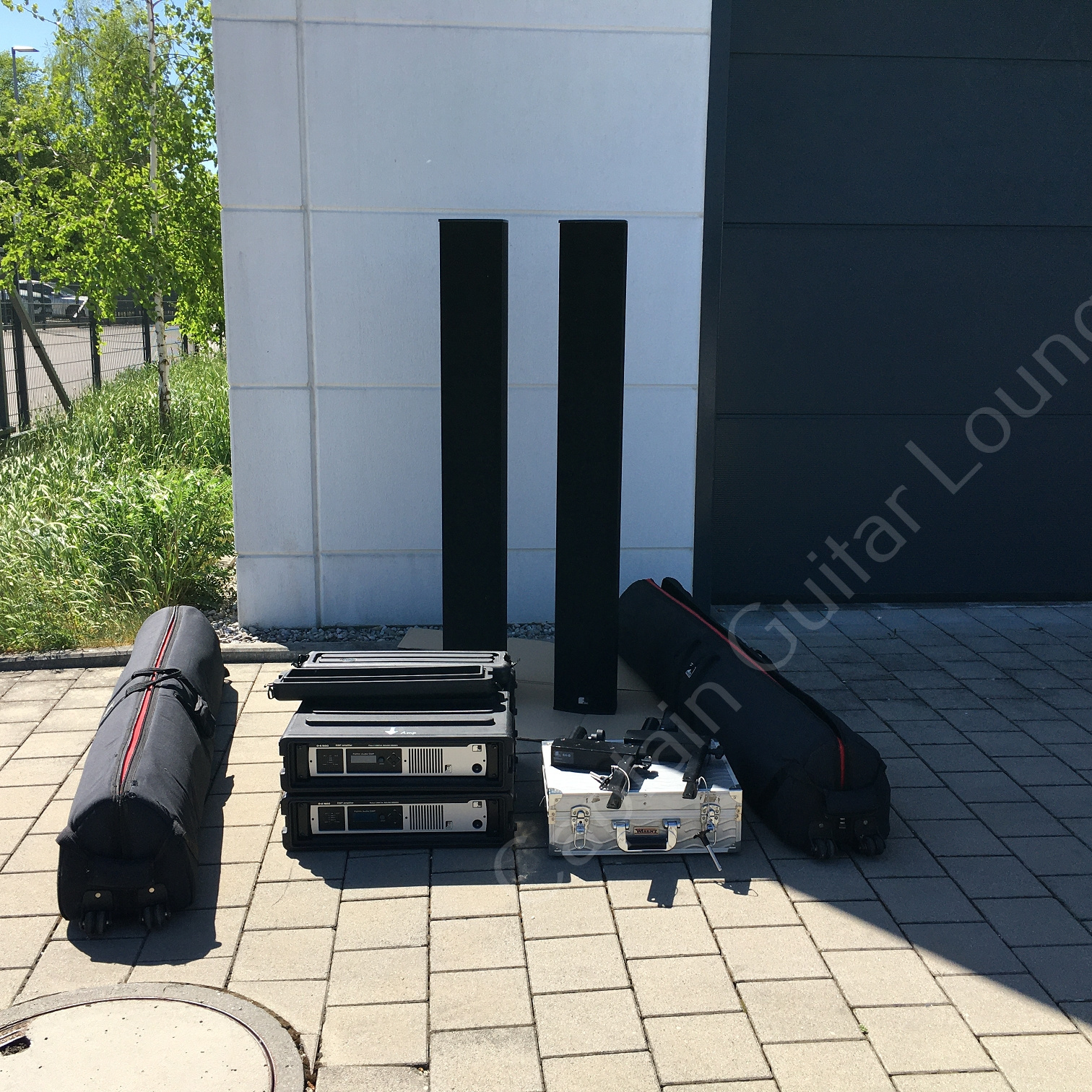

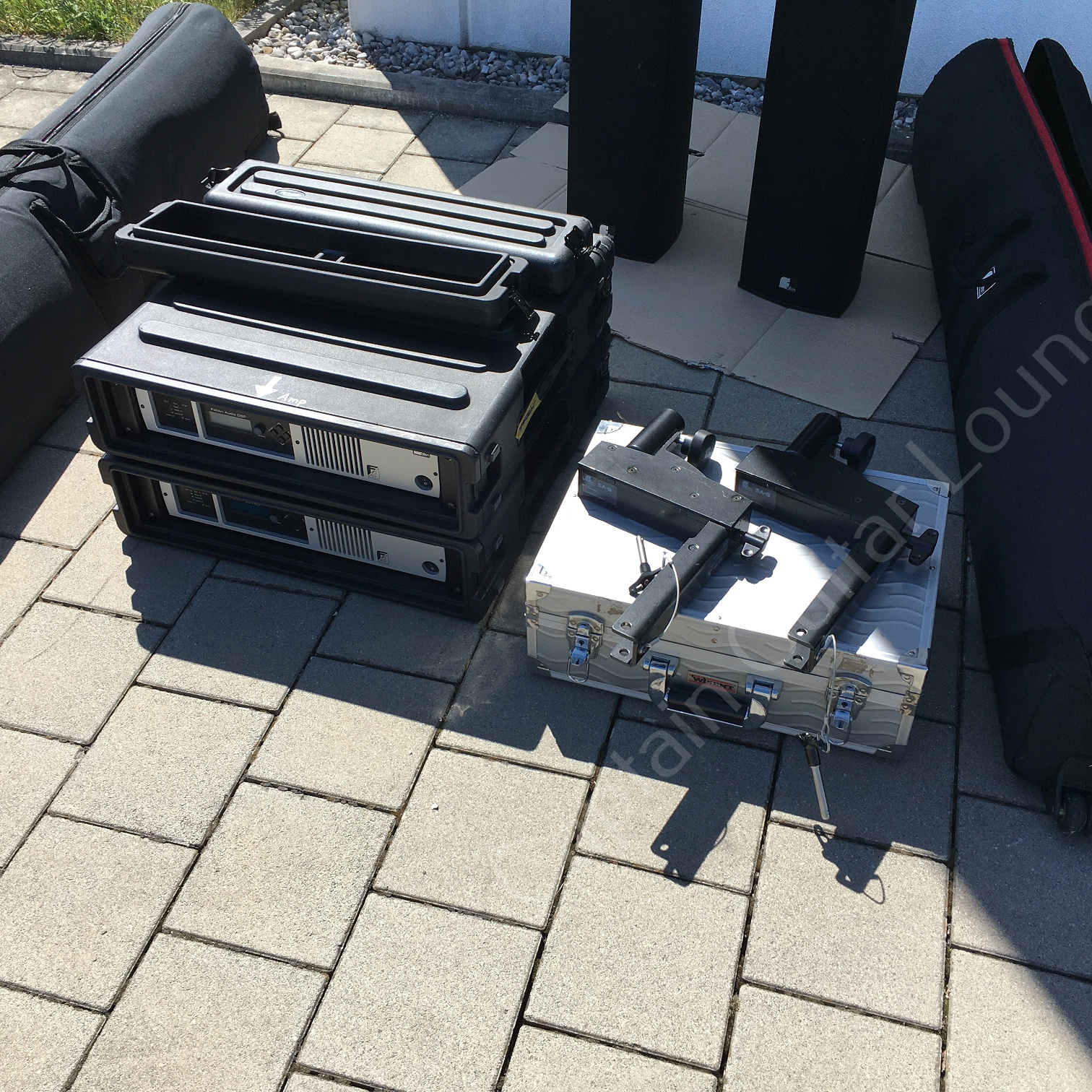

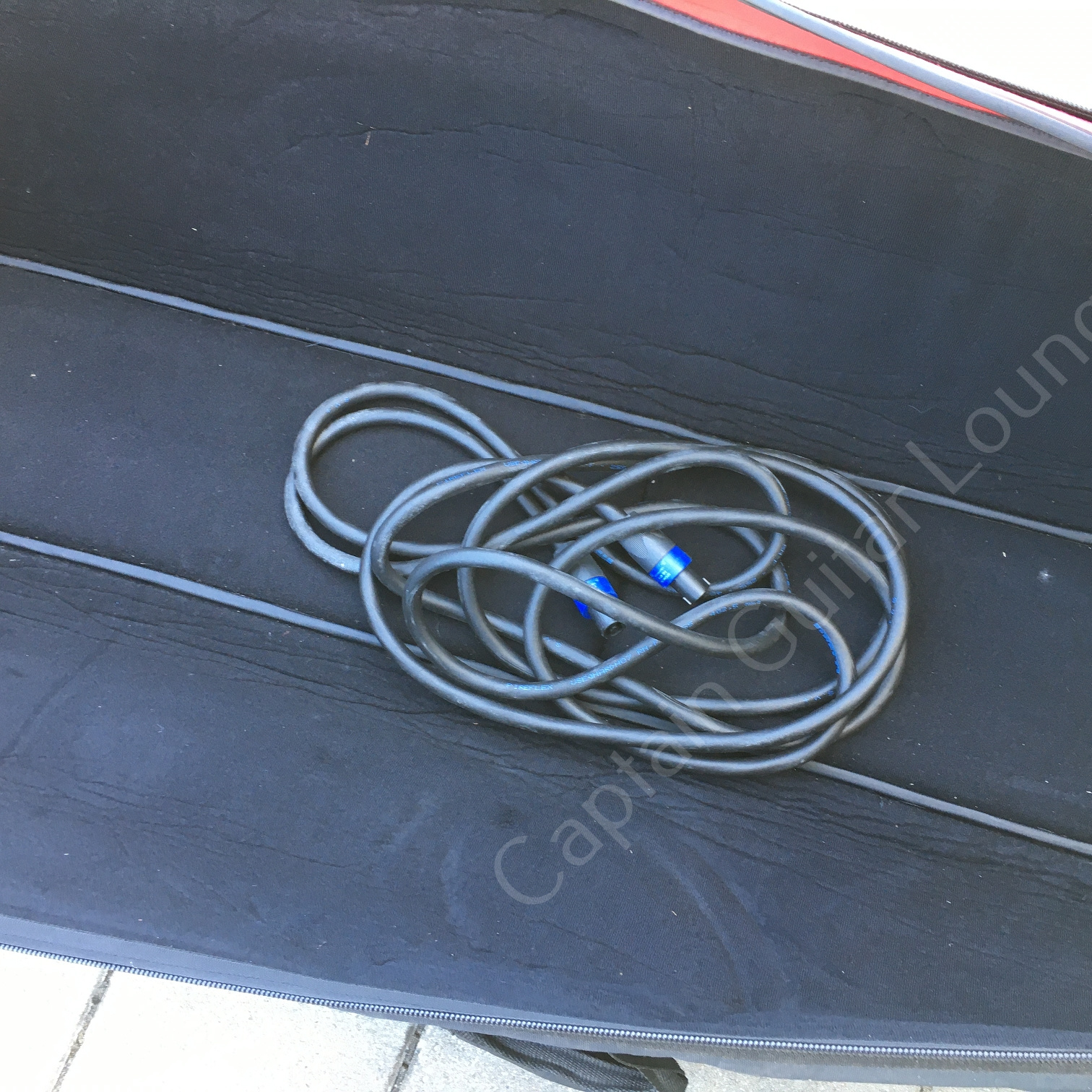

Carrying cases, cables, 2 tripod adapters included
