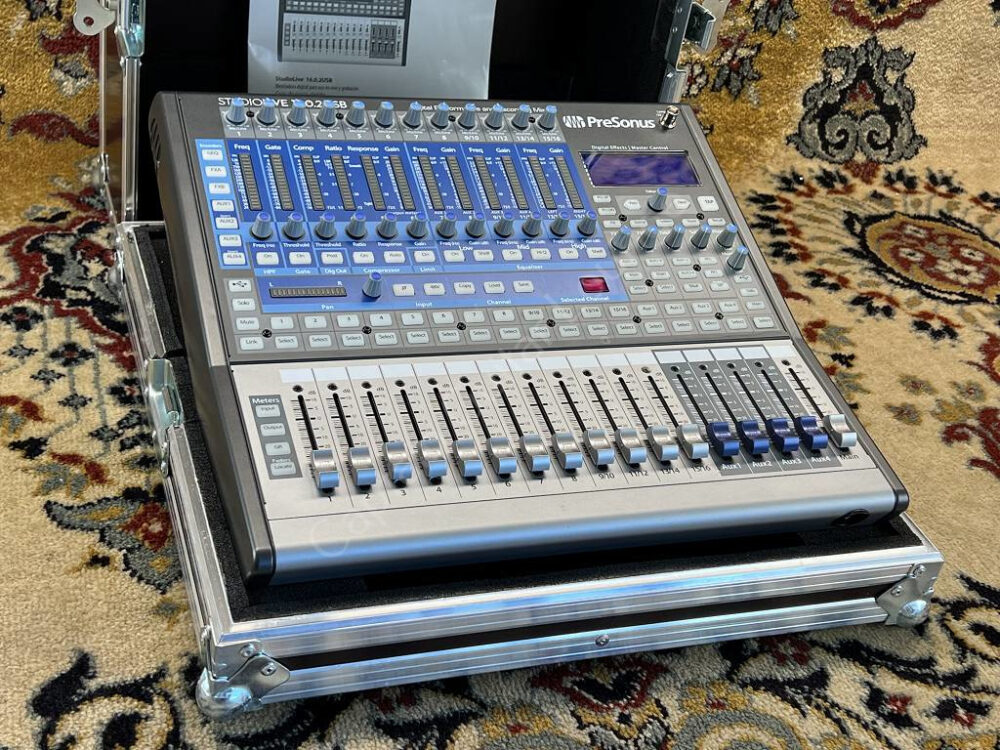

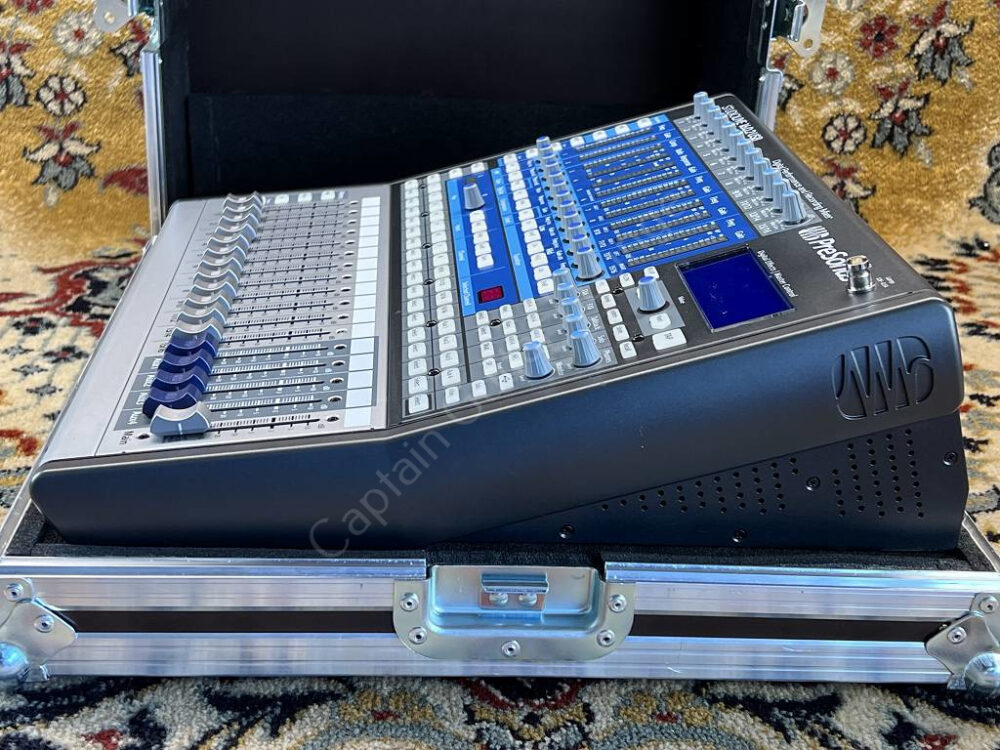

2011 Presonus – Studio Live 16.0.2 USB – Digital Mixer – ID 3028

Super condition, without significant signs of use.

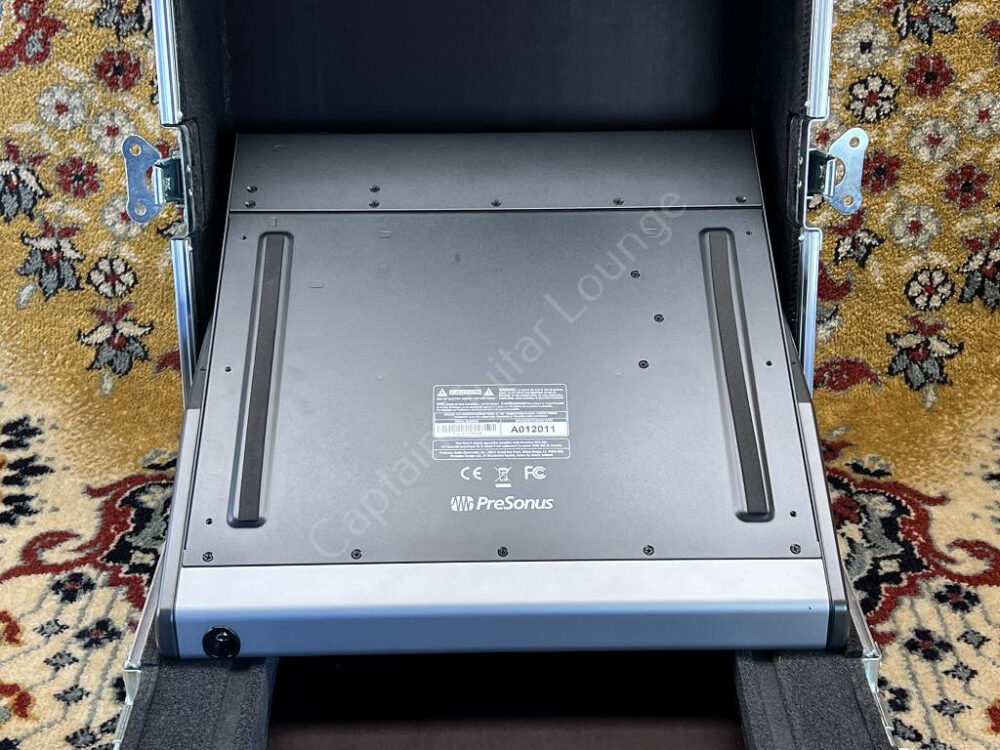

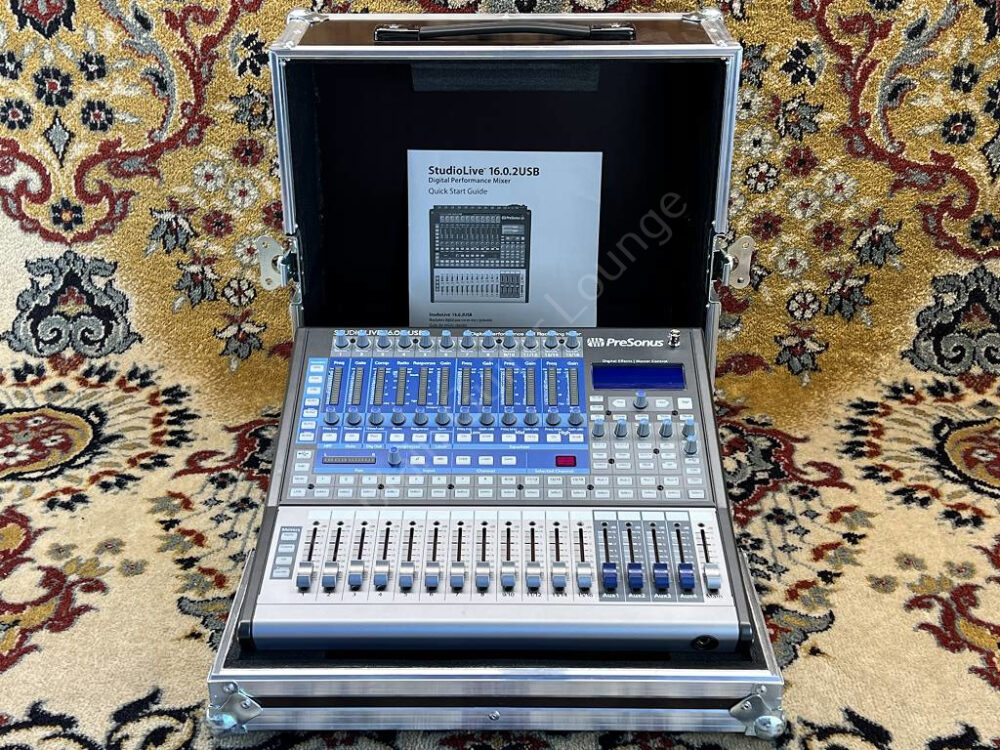

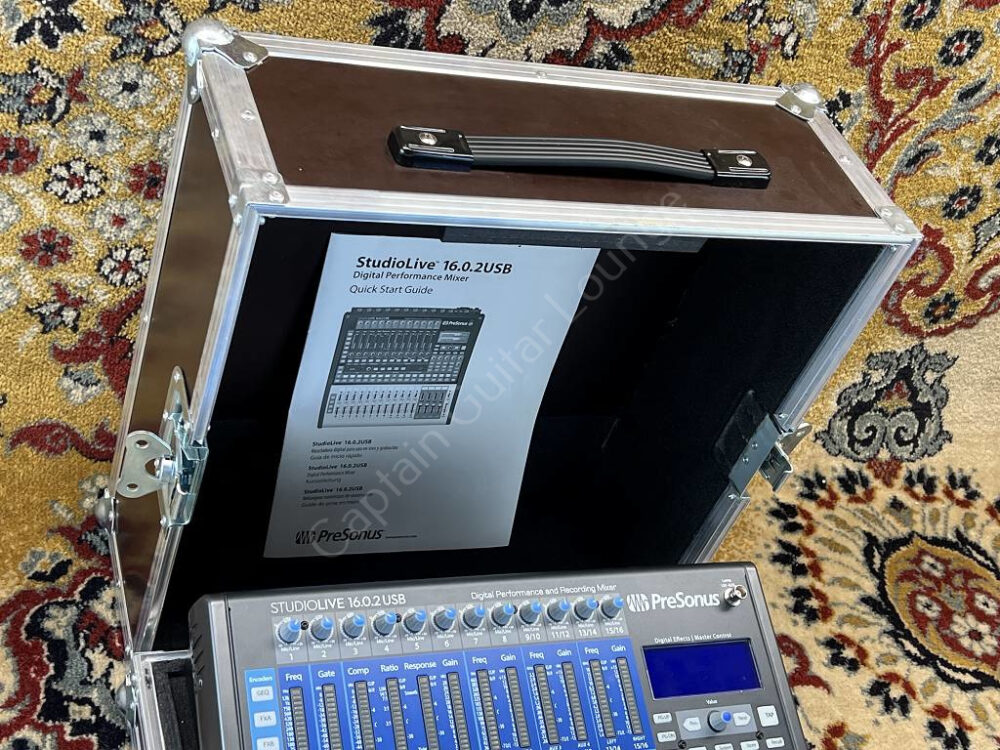

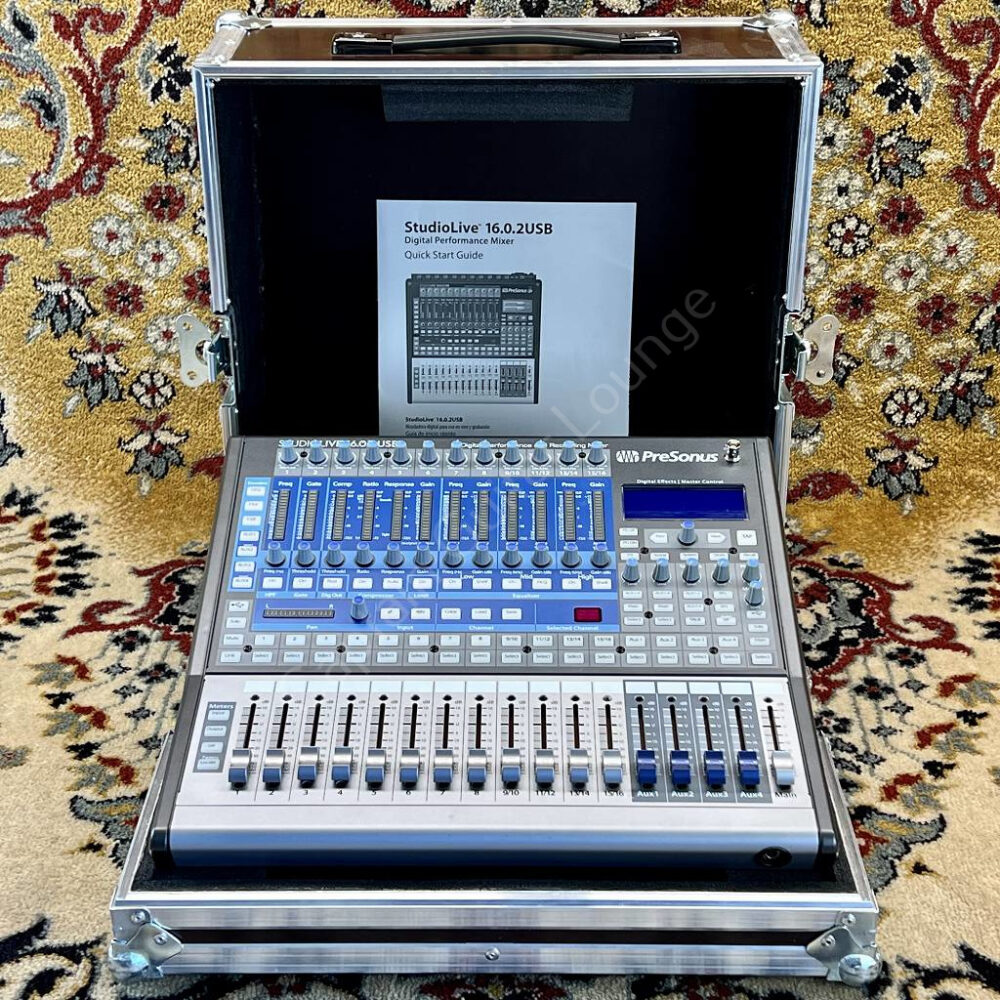

With custom-fit flight case.

16-channel digital mixer with integrated 18x16 USB audio interface (24 bit / 48 kHz)
8 mono channels
4 stereo channels
4 aux ways

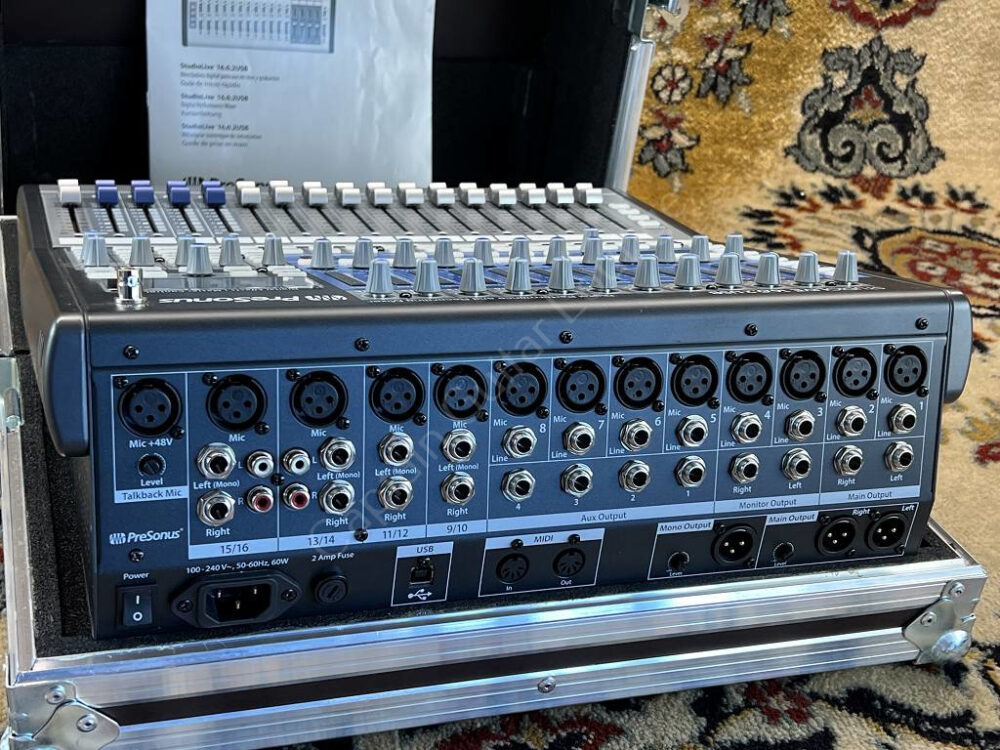

Inputs: 12x XLR (microphone), 12x TRS jack (line) and 4x RCA (line)
Outputs: 3x XLR (sum L/R, mono sum), 8x TRS jack (sum L/R, monitor L/R 4x aux)
Stereo headphone output: 6.5 mm jack with volume control
Talkback section with dedicated XLR microphone input
13 XMAX Class A preamplifier
audiophile Burr-Brown digital converters with 118 dB dynamic range

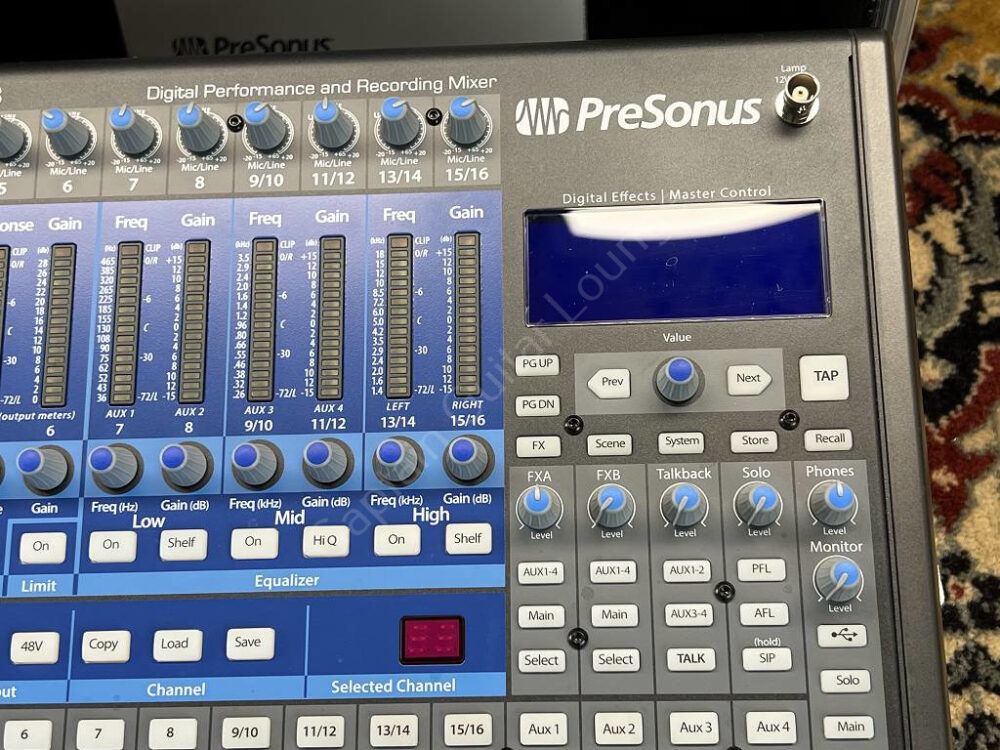

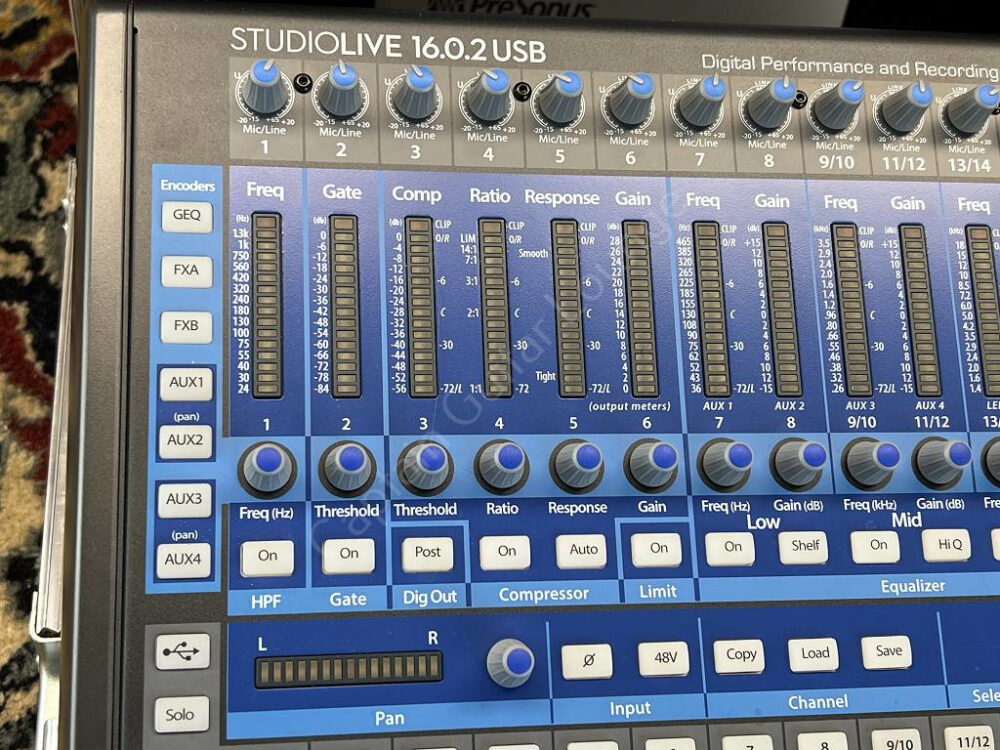

Fat Channel with phase switch, HPF, compressor, limiter, noise gate
semi-parametric 3-band EQ
Panpot and phantom power
50 fat channel presets
50 user memory
2 master effects processors (delay/reverb)
50 FX presets
50 user memory
31-band graphic EQ in the sum
Scene automation with load/save/recall
79 User memory

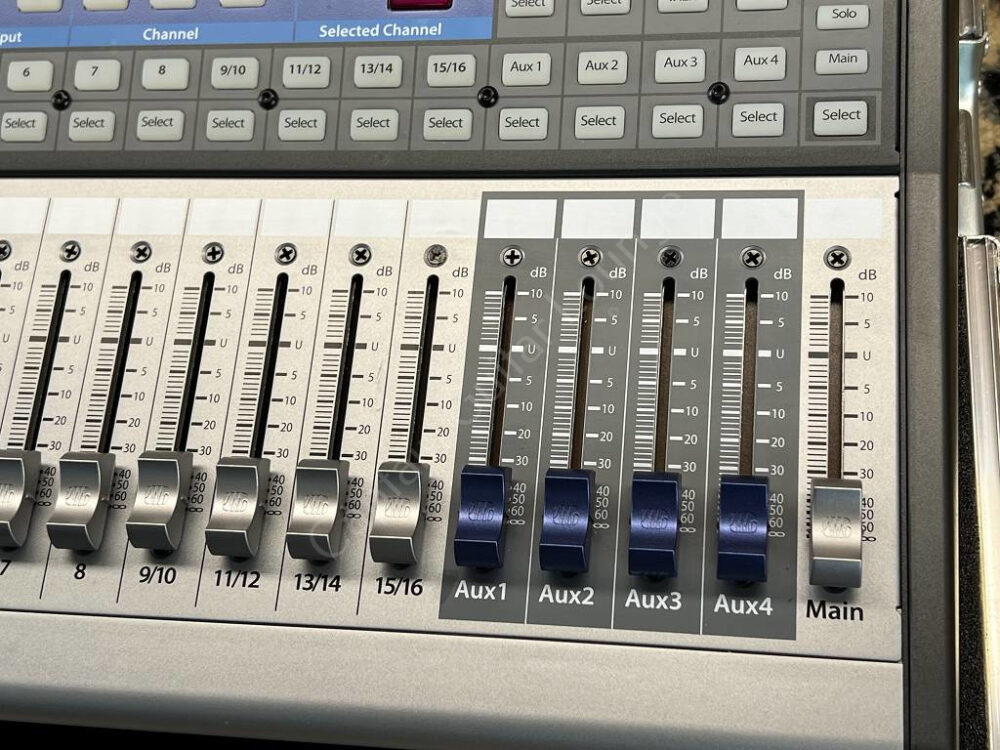

17x 60mm faders
12 LED chains (level meter and parameter values)
MIDI input and output
MIDI control via commercially available footer: Scene change
Sum volume
Effect volume
Effect mute
Steel housing
19"-capable (requires additional rack angles)
Dimensions (W x D x H): 406 x 397 x 140 mm
