Description

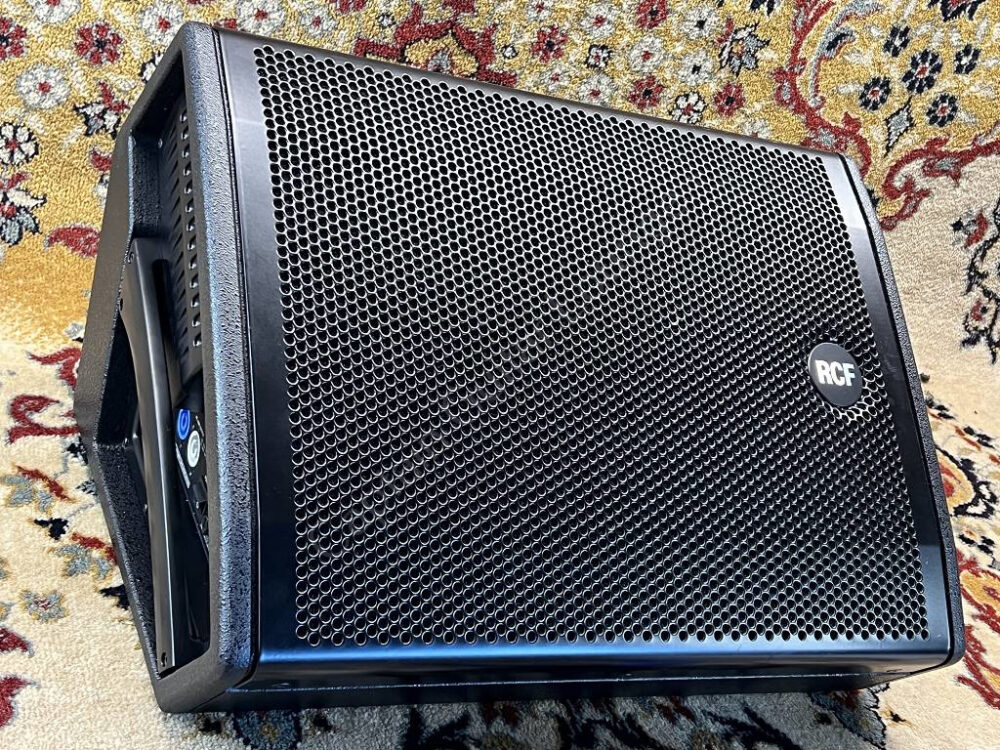

The RCF NX12-SMA stage monitor is equipped with a 700 W bi-amp digital power amplifier and a specially designed 12″/1″ coaxial neodymium chassis,
which provides superior sound quality and precise dispersion characteristics in an extremely compact and lightweight system.
Thanks to the high-quality 12″ woofer and the high amplifier power, the NX12-SMA has a very powerful reproduction for a superior live performance in all situations.
The NX12-SMA can also be used as a main sound reinforcement system thanks to the lateral high stand flange and features a high-quality multiplex enclosure with robust textured lacquer with 2 set-up angles for perfect alignment of the monitor on stage for near-field or far-field monitoring.

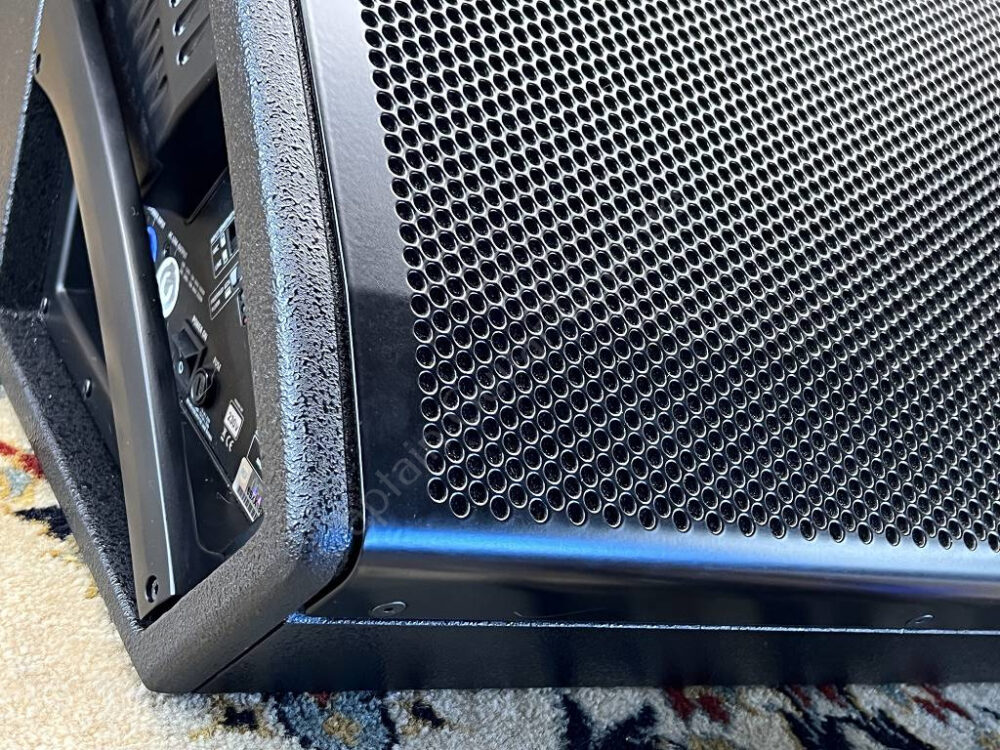

The complete electronics are integrated into the side of the housing and offer optimum protection and wearing comfort thanks to the integrated handle.
Frequency response: 50 – 20,000 Hz
Max. SPL @ 1m: 130 dB
Radiation angle (H x V): 60 x 60°.
Compression driver: Coaxial 1.0” neo, 1.75” v.c
Woofer: Coaxial 15” neo, 2.5” v.c
Total power: 700 W (RMS)
HF range: 200 W (RMS)
Low frequencies: 500 W (RMS)
Input sinal: bal/unbal
Input jacks: XLR, 6.3 mm jack
Output connectors: XLR
Input sensitivity: +4 dBu
Protection circuits: RMS, HF
Limiter: Soft Limiter
Control: Freefield, Floor
Cooling: Convection

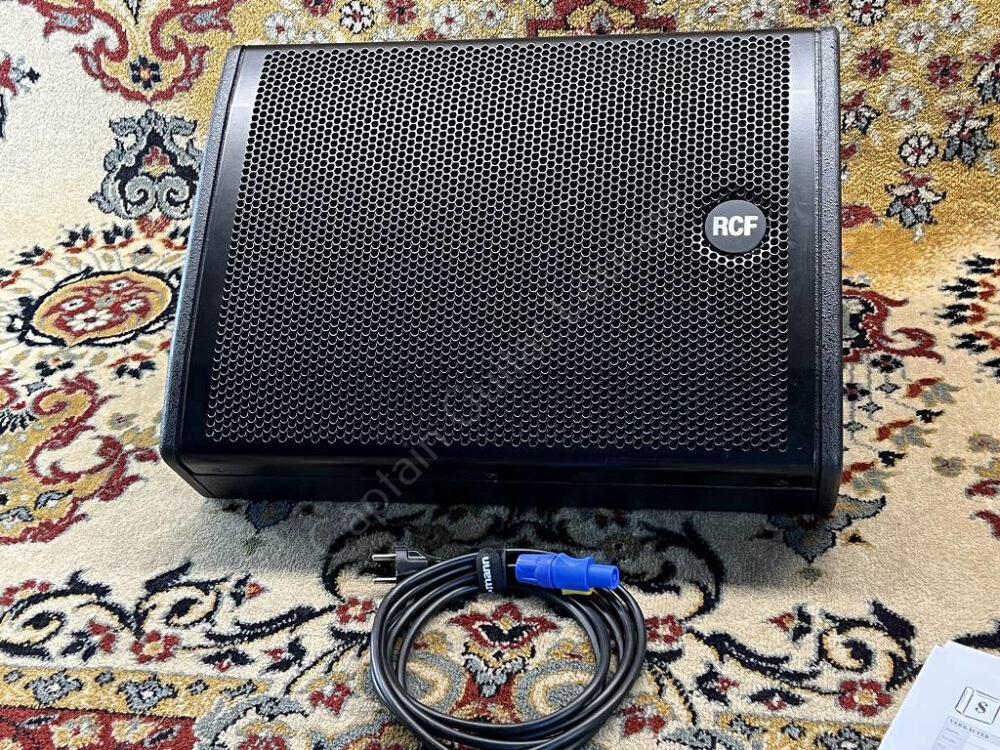

Connections: Powercon IN/OUT
1 handle (lateral)

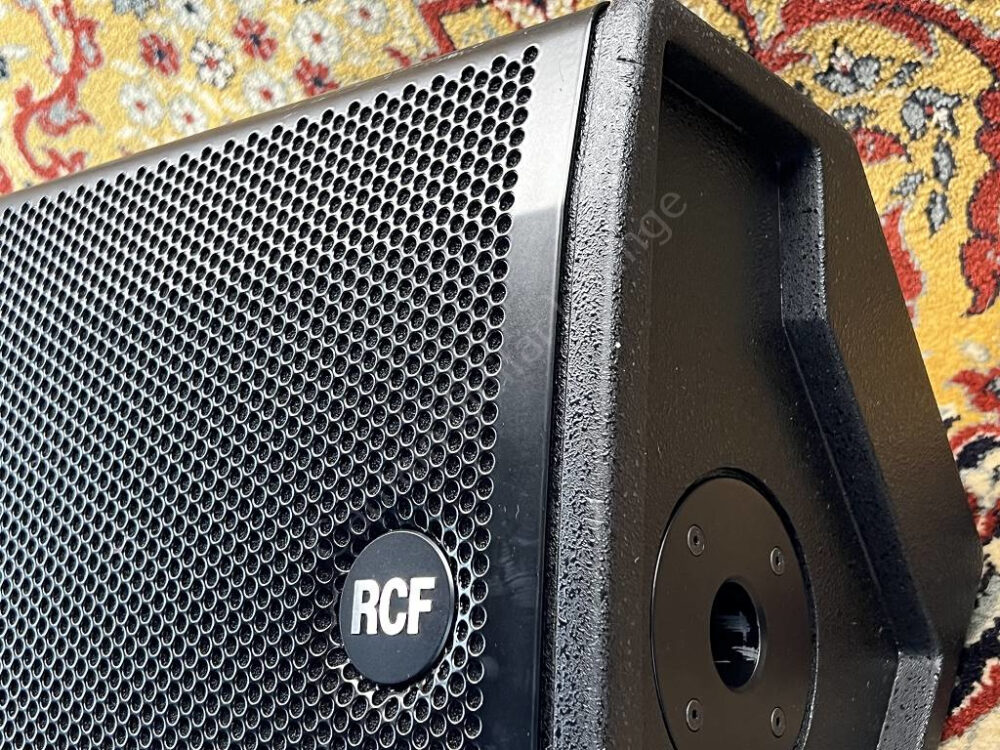

Standard flange
Material housing: birch multiplex
Material grid: steel
Dimensions (W x H x D): 650 x 362 x 468 mm
Weight: 17 kg
