1.977,00 €
Hand-wired boutique amp from Upper Bavaria
Condition: Very Good
SerNo: 001
Weight: 15.2 kg
Shipping class: Standard
Foot switch: yes
Brokered sale: 10930
1.977,00 €
1 in stock
1 in stock
Du hast Fragen zu diesem Artikel?
Ruf uns an +49 (0)8141 8886971
oder schreib uns eine Nachricht
The Brown Deluxe with the 6G3 circuit is unlike any other Fender amp from that era. Leo's approach—to make the amps sound as loud as possible without distortion—worked the least here. When you hear him speak, he reminds you more of his colleague Jim from England.
The reason for the “abnormality” lies in the circuitry. Unlike the 5E3, the brown one has a long-tail phase inverter that provides significantly more gain than the simpler split-load circuit that preceded it. And then there's an additional amplifier stage, because half of the tremolo tube is still left. To avoid overdoing the gain, only about 10% of the working resistance is used here, but even that is enough to produce a singing crunch sound starting at volume 3. To get clean tones, you'll need to adjust the pot on the guitar.

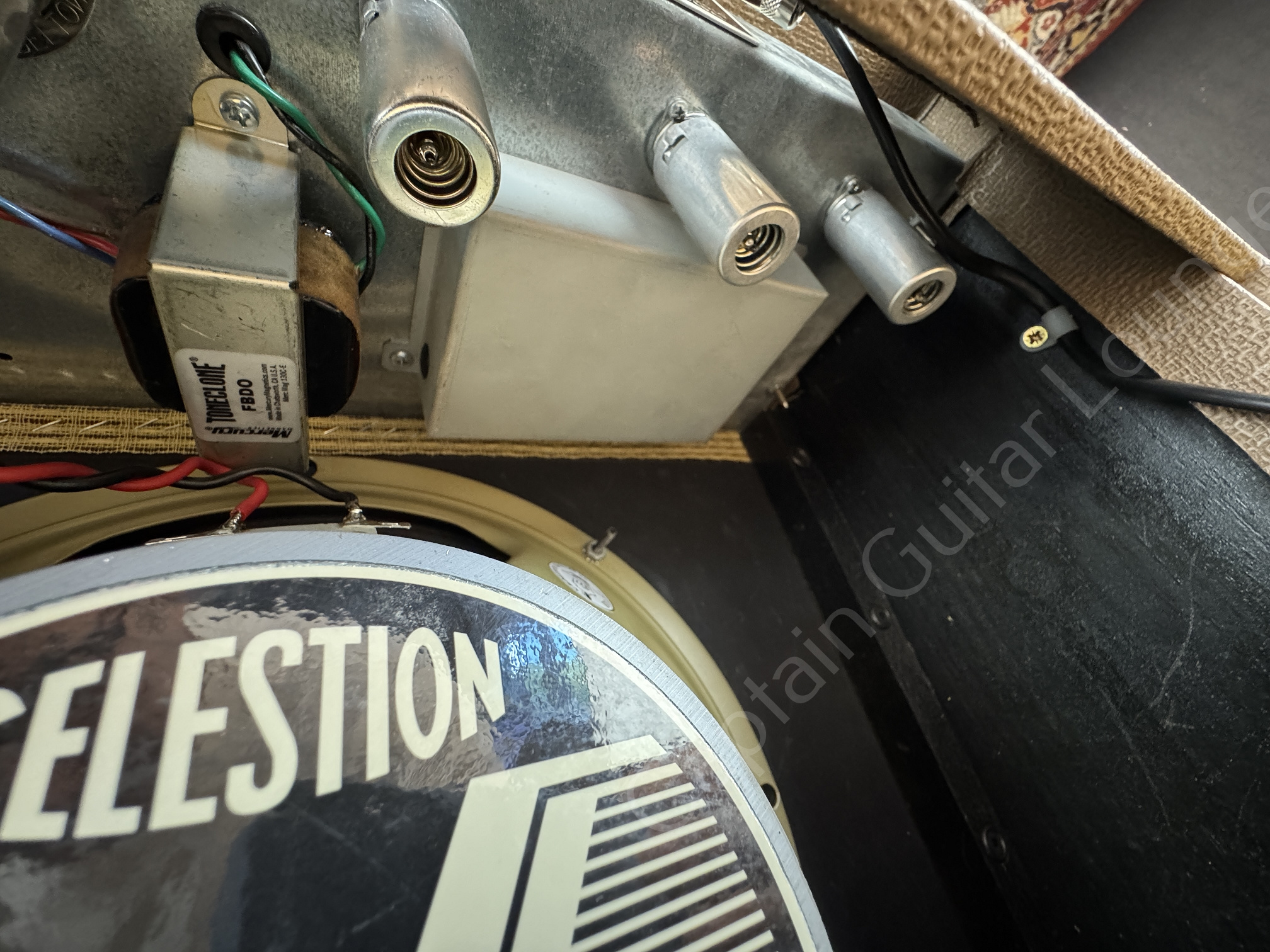

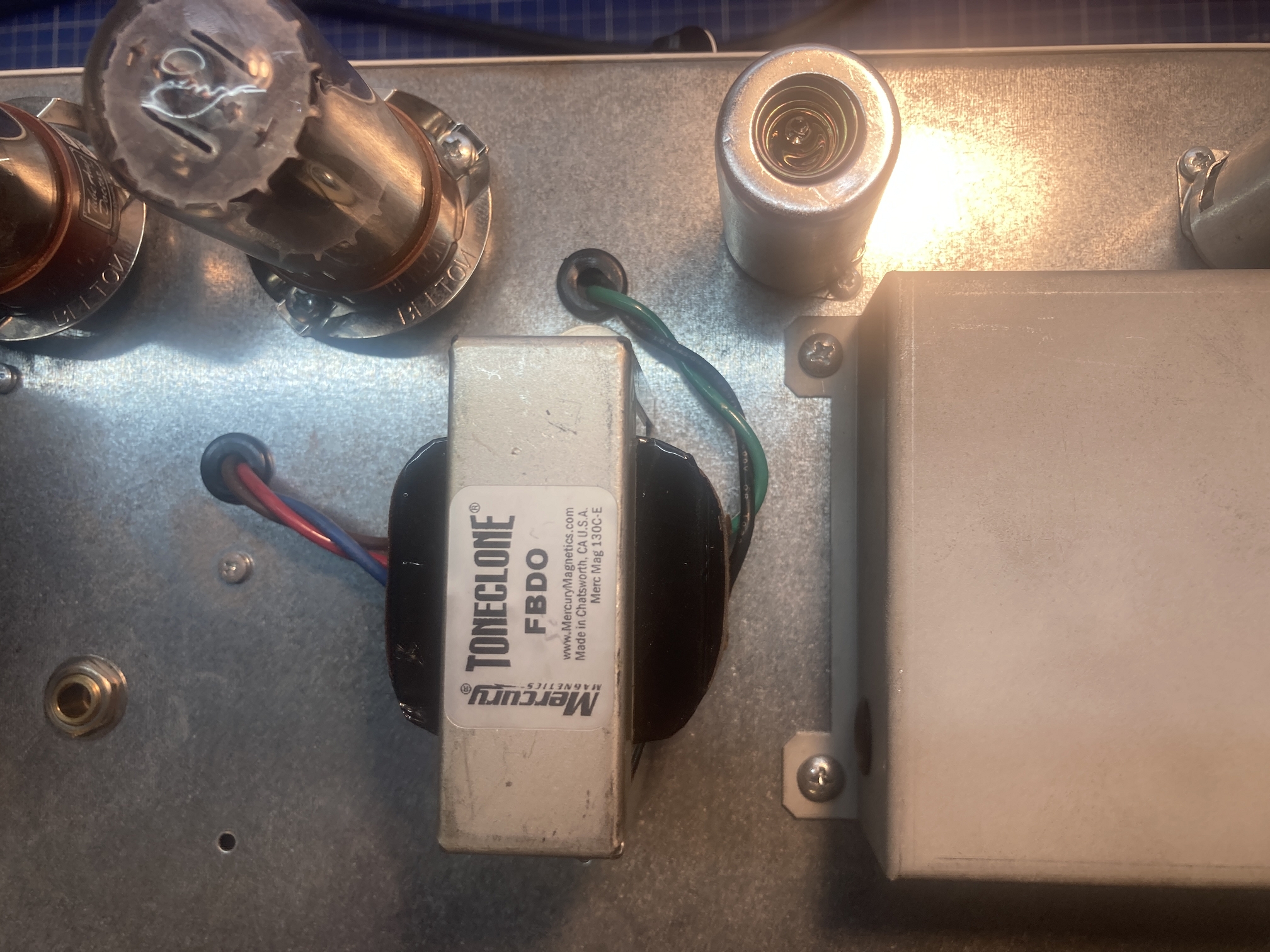

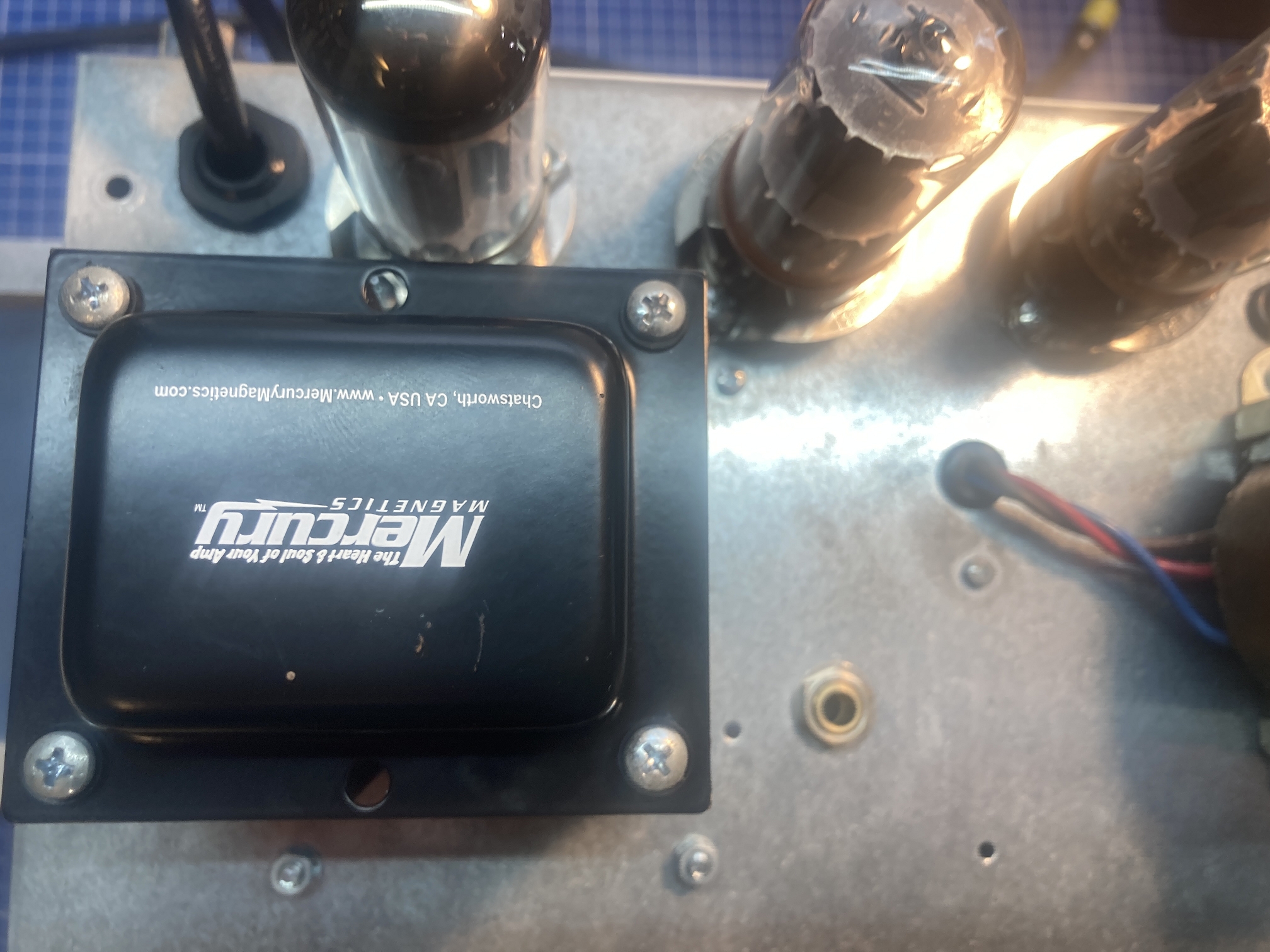

Of course, we're using transformers from Mercury Magneticshere as well, and we certainly didn't skimp on the iron—especially in the power transformer.

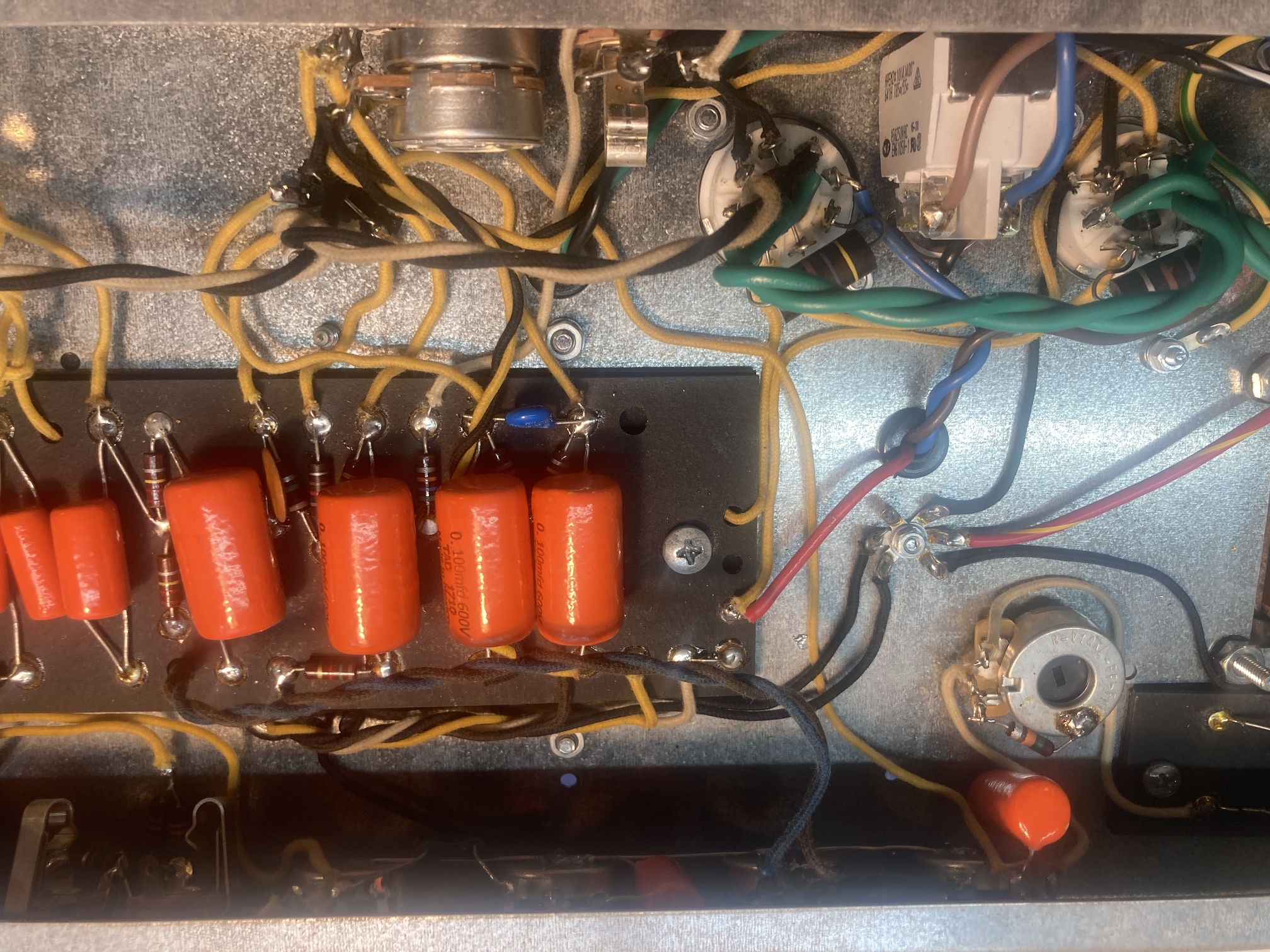

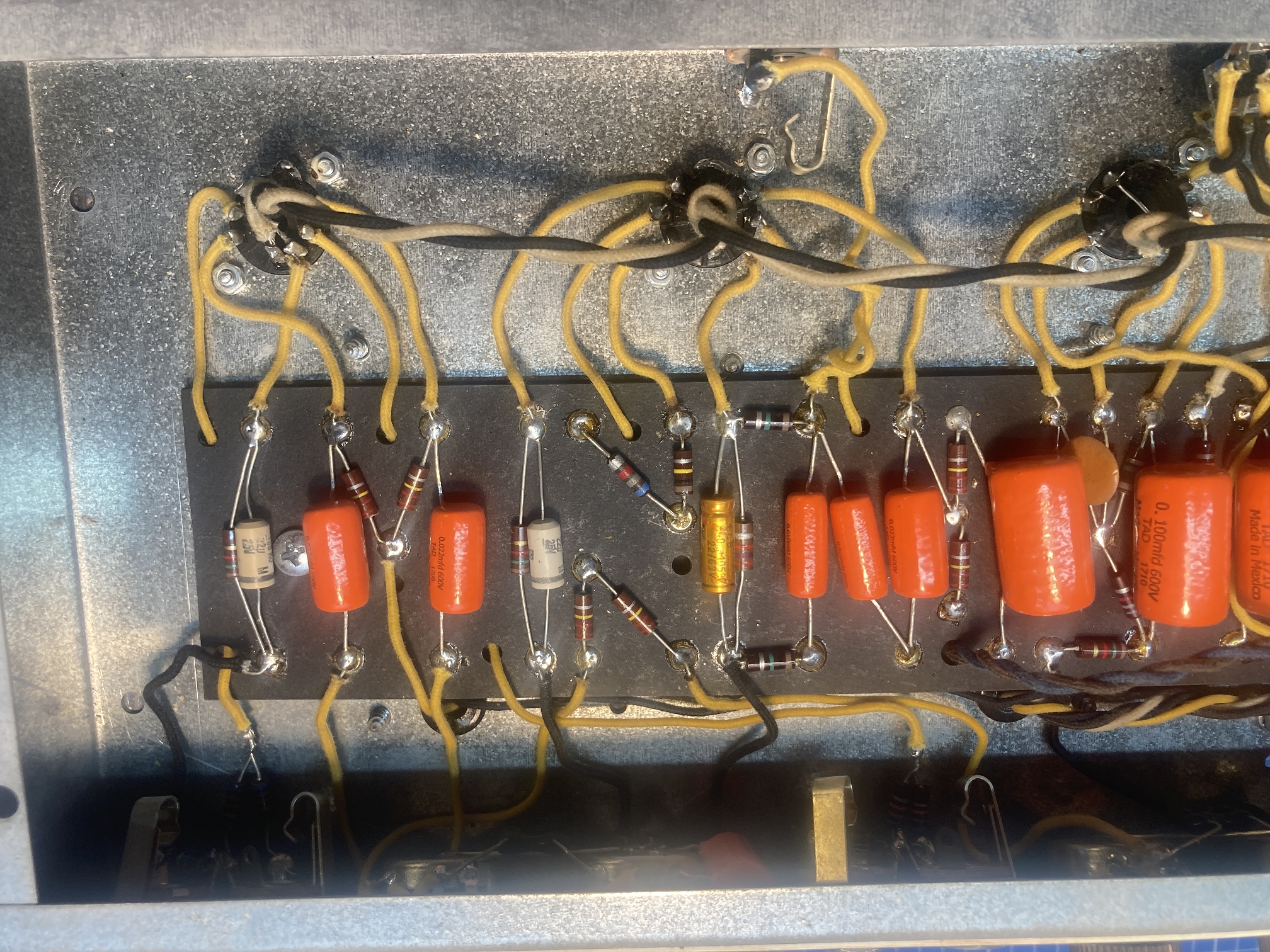

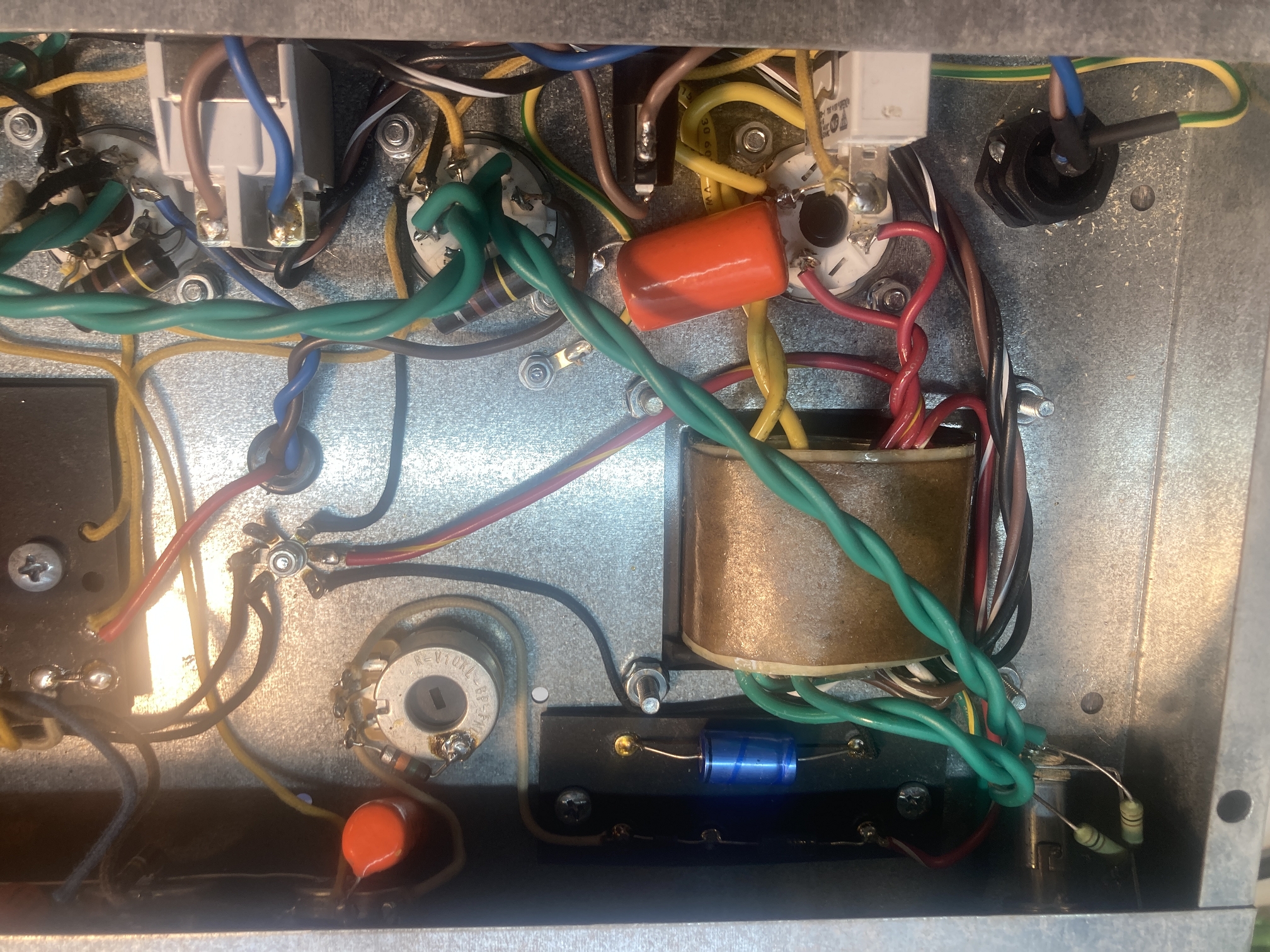

As usual, the amps are hand-wired using high-quality components and a great deal of expertise and attention to detail—and you can hear that from the very first note.
Thoroughly inspected and equipped with two new 6V6 power tubes.

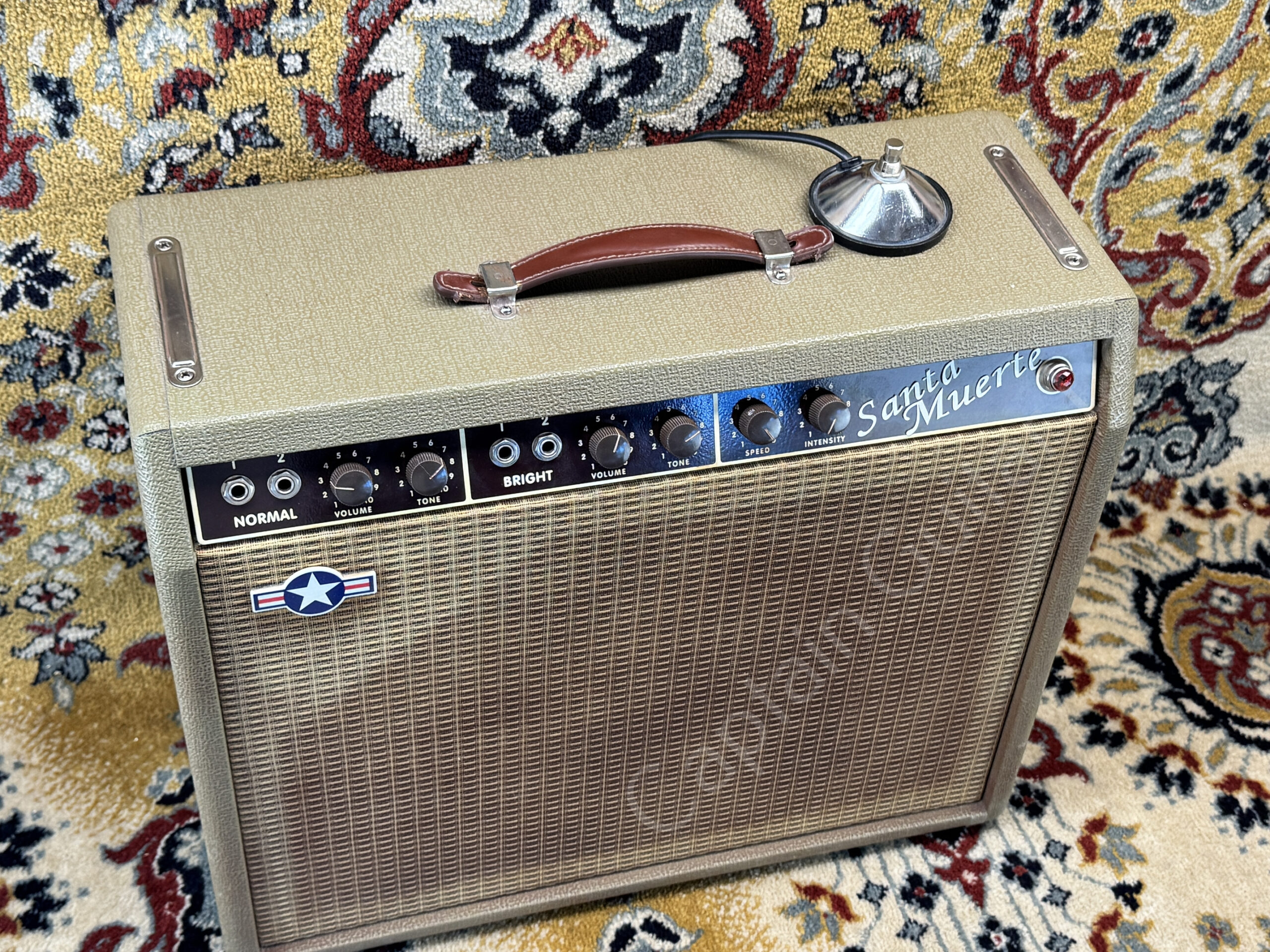

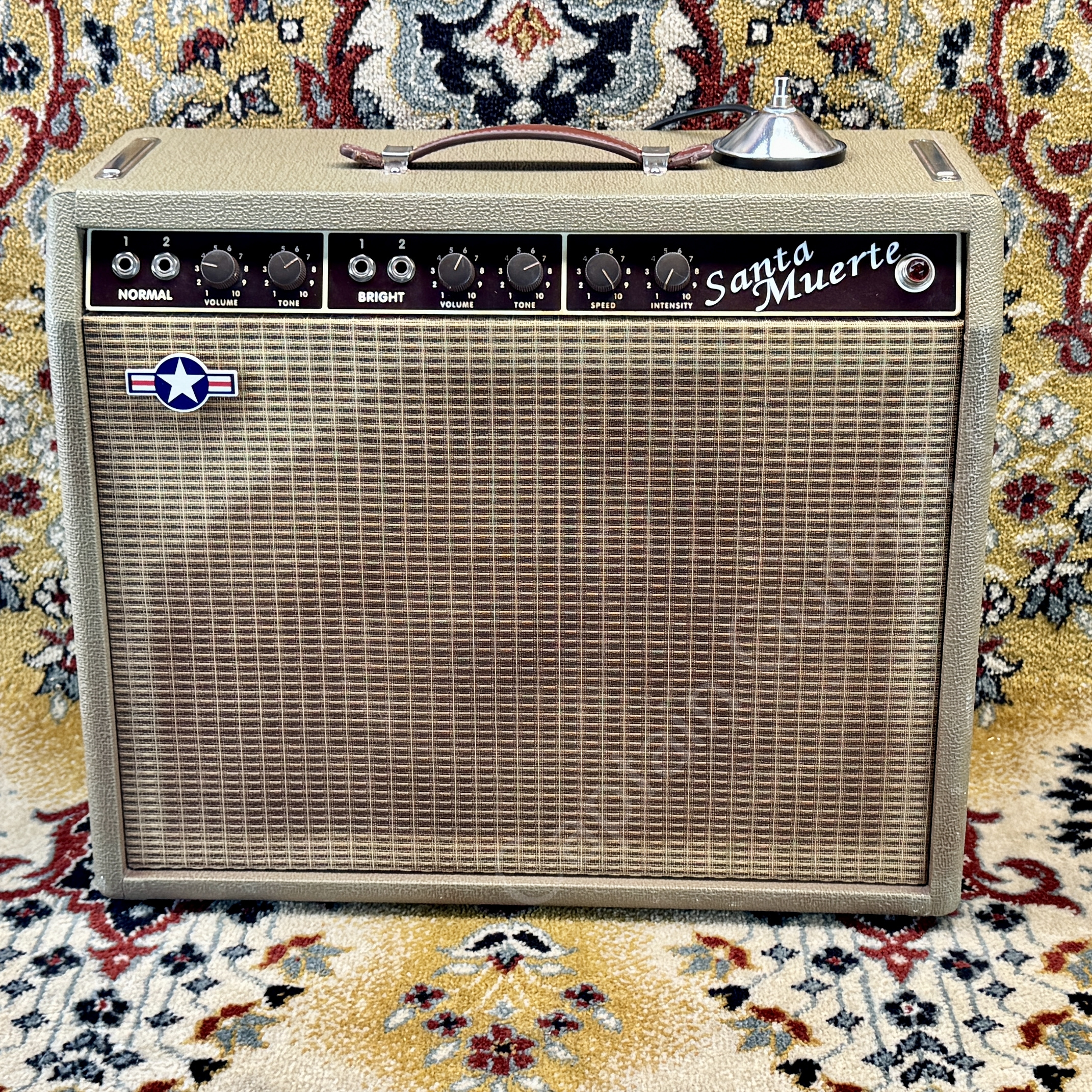

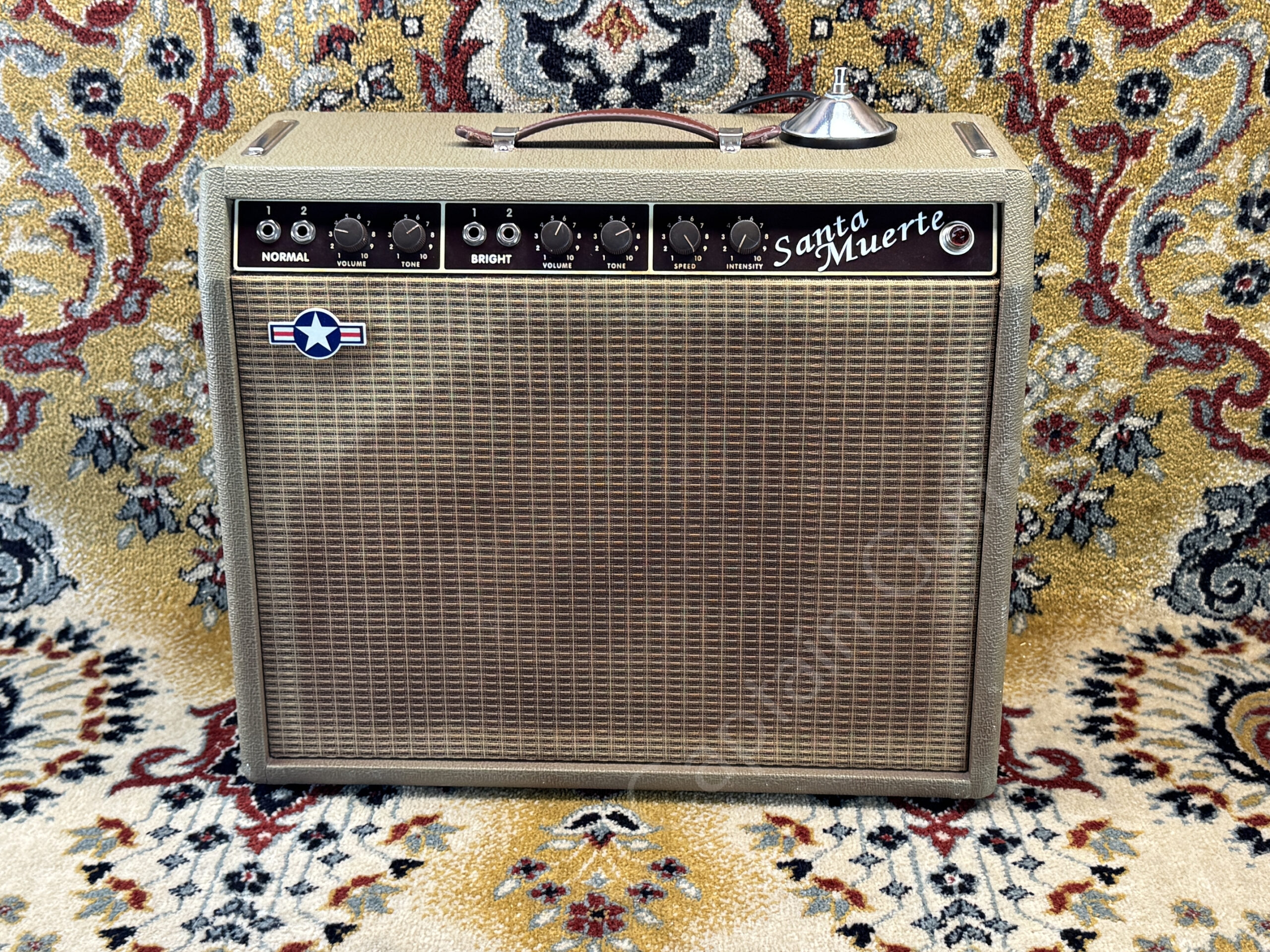

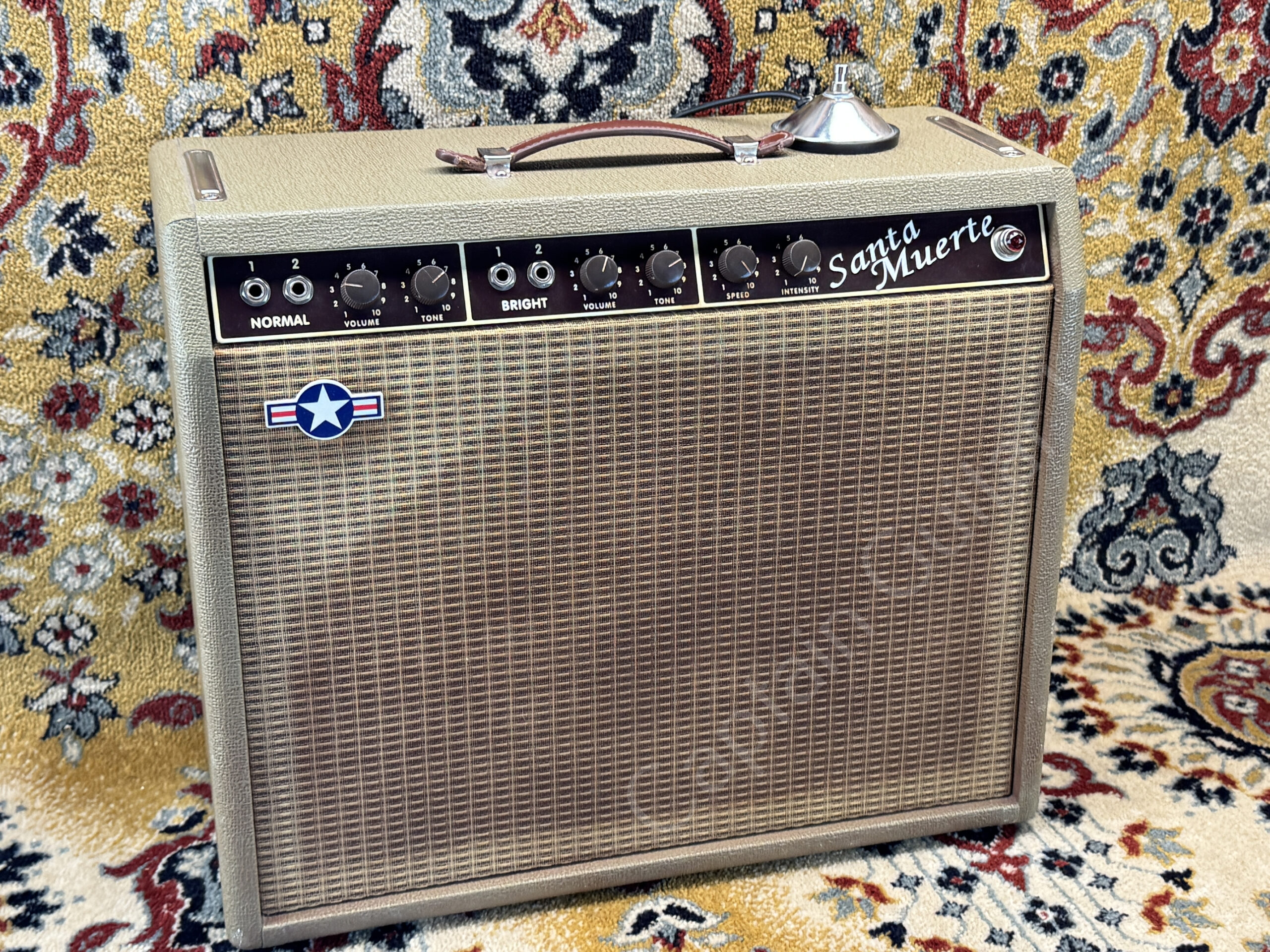

✅ Model: Captain Brown Deluxe Santa Muerte Aged
✅ Year of construction: 2018
✅ Hand-wired all-tube amplifier
✅ Class-AB circuit
✅ Power: approx. 20 watts

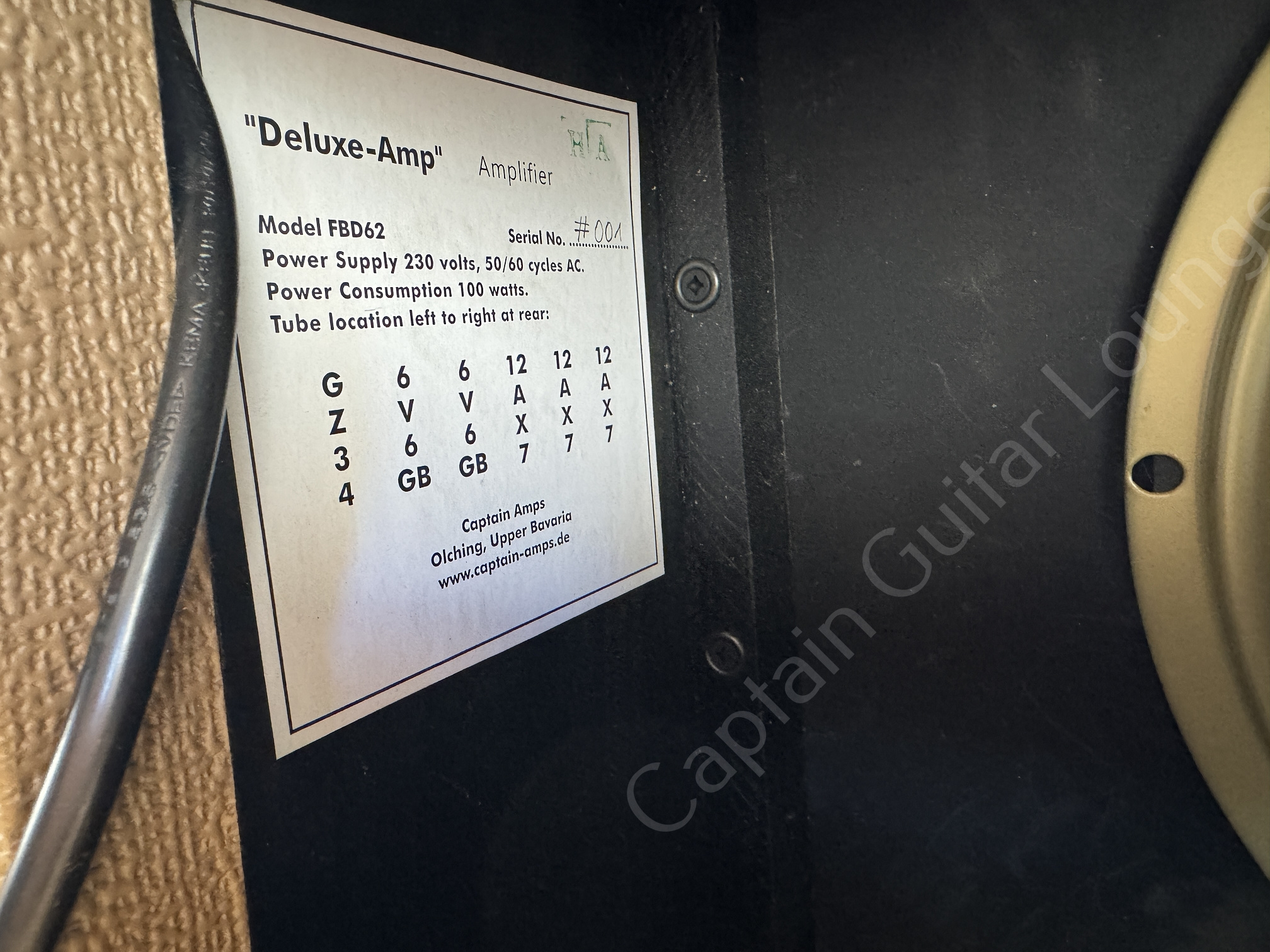

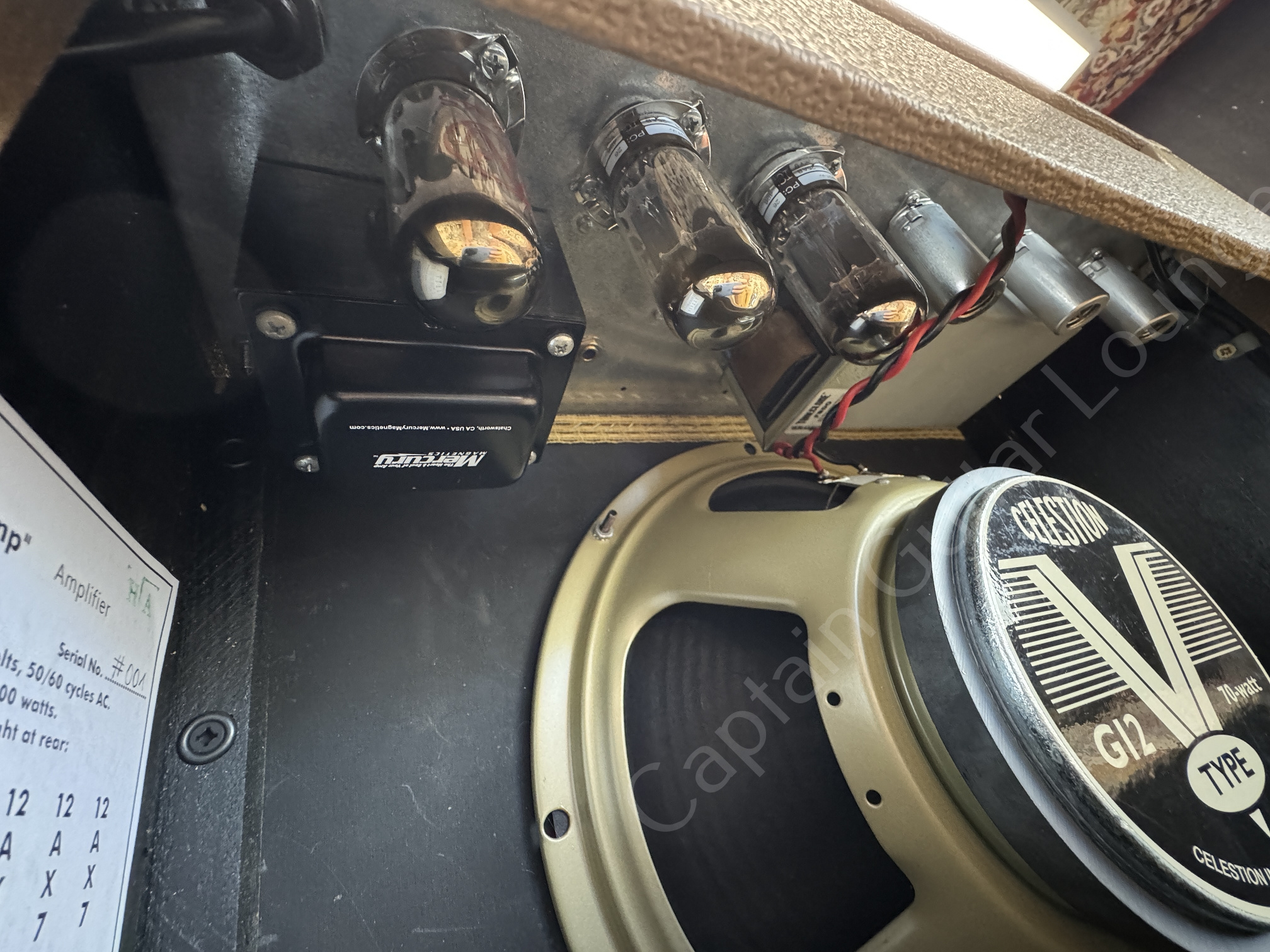

✅ Power amplifier: 2x TAD 6V6GT-STR - new
Preamplifier: 3x 12AX7
✅ Tube rectifier: GZ34

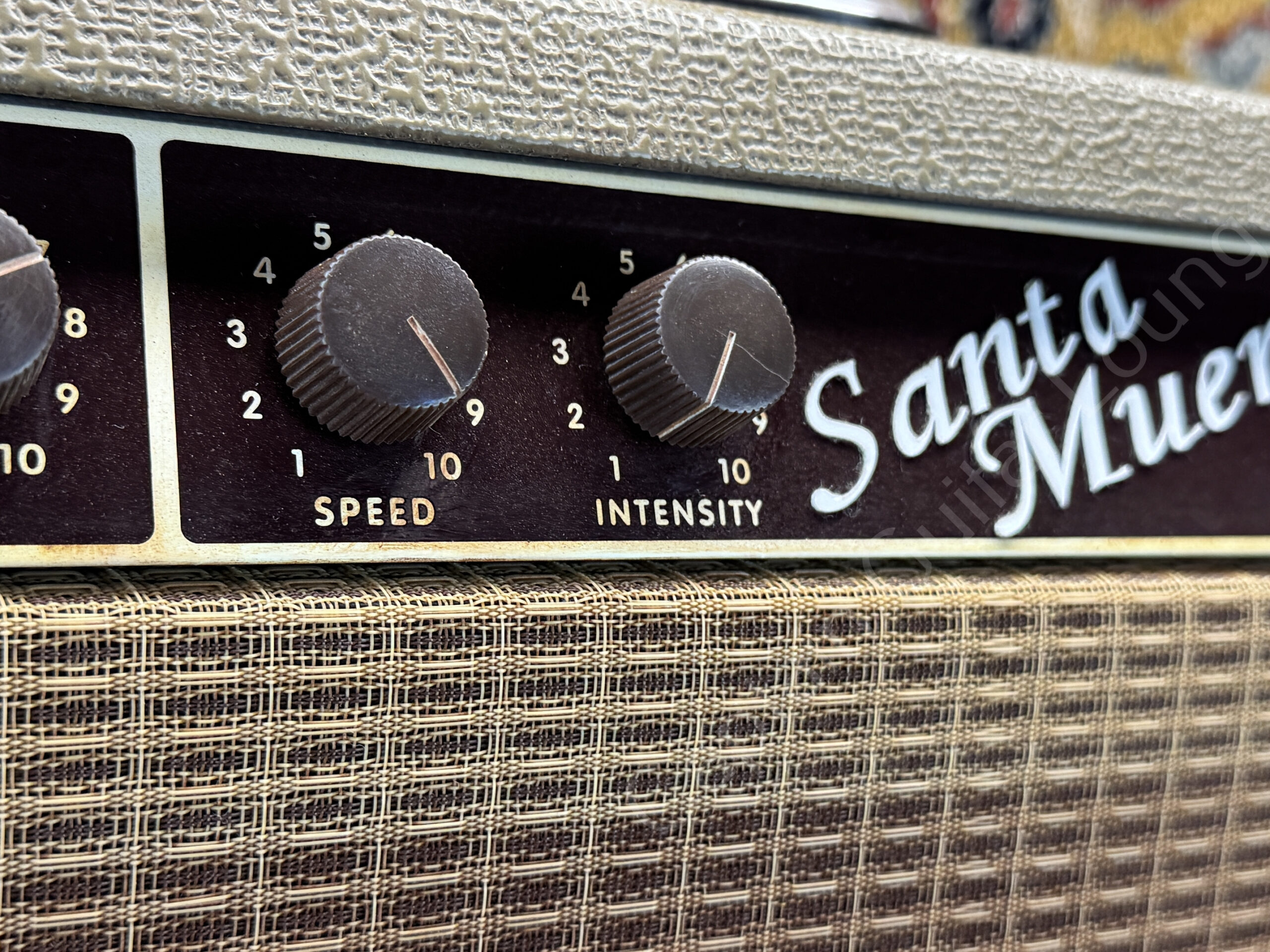

✅ Bias Tremolo

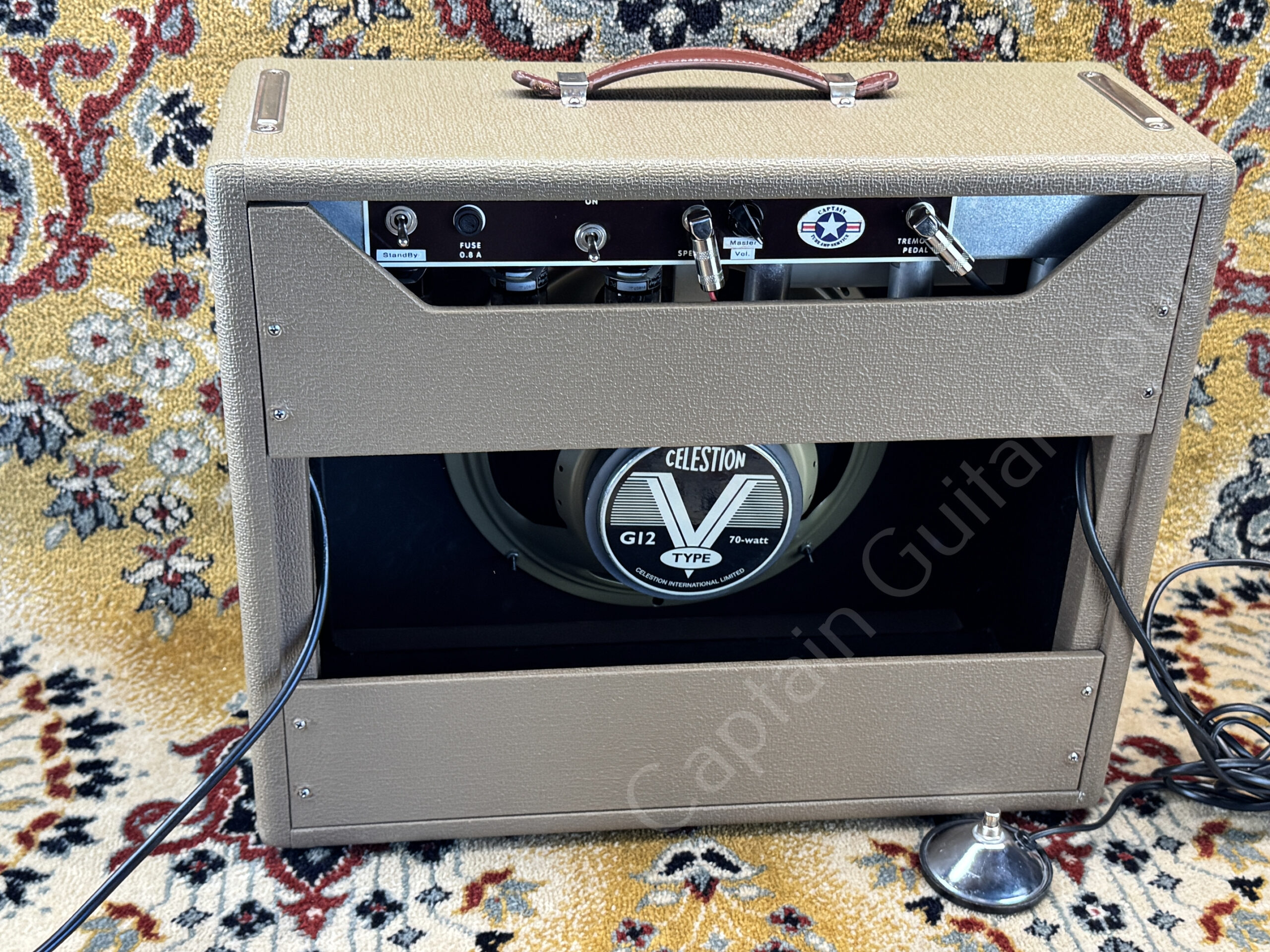

✅ Foot switch for tremolo included

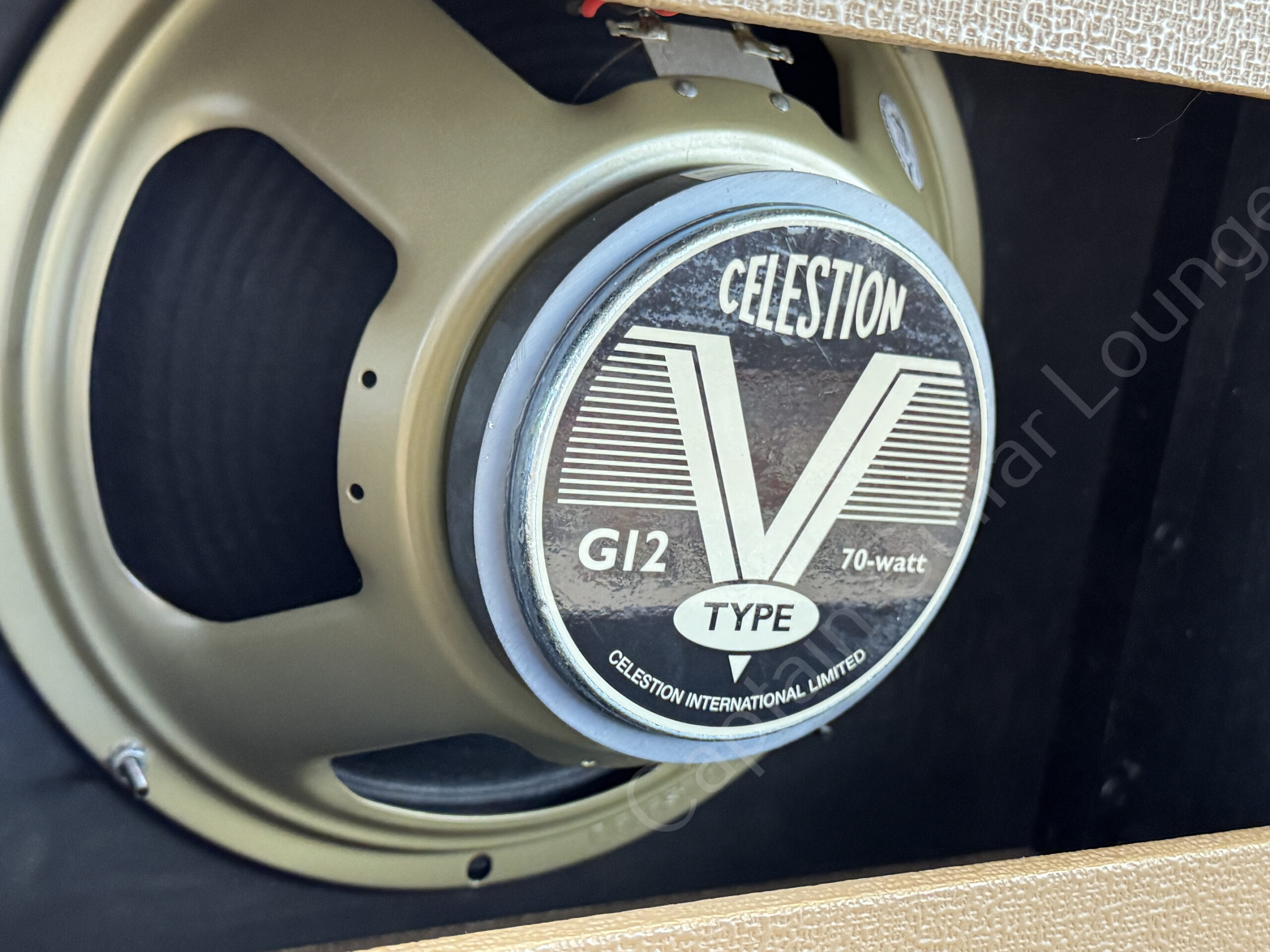

✅ Speaker: Celestion V-Type
✅ Frame: Finger-jointed pine
✅ Upholstery: Brown Tolex

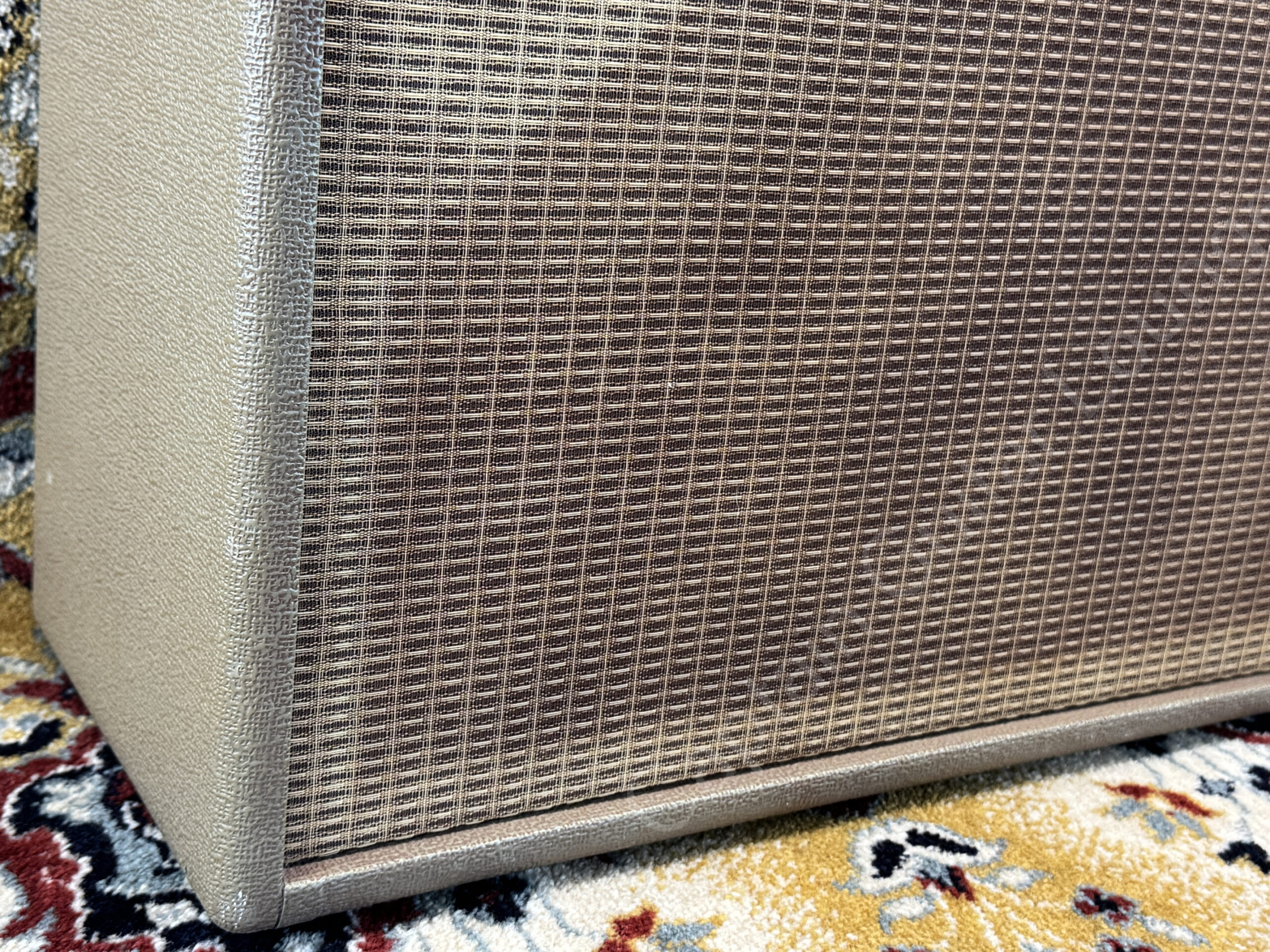

✅ Grillcloth: Tan & Brown - Aged

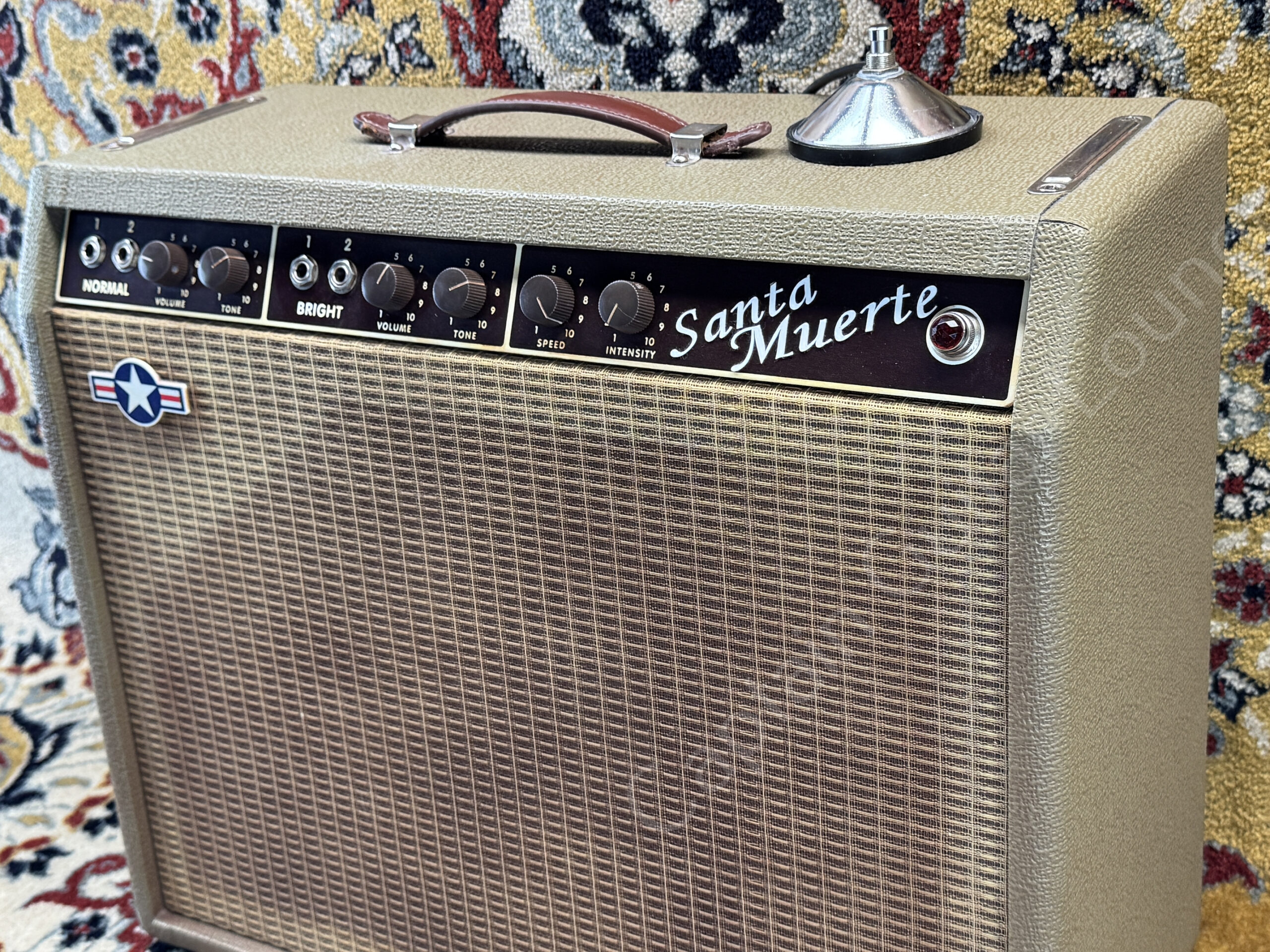

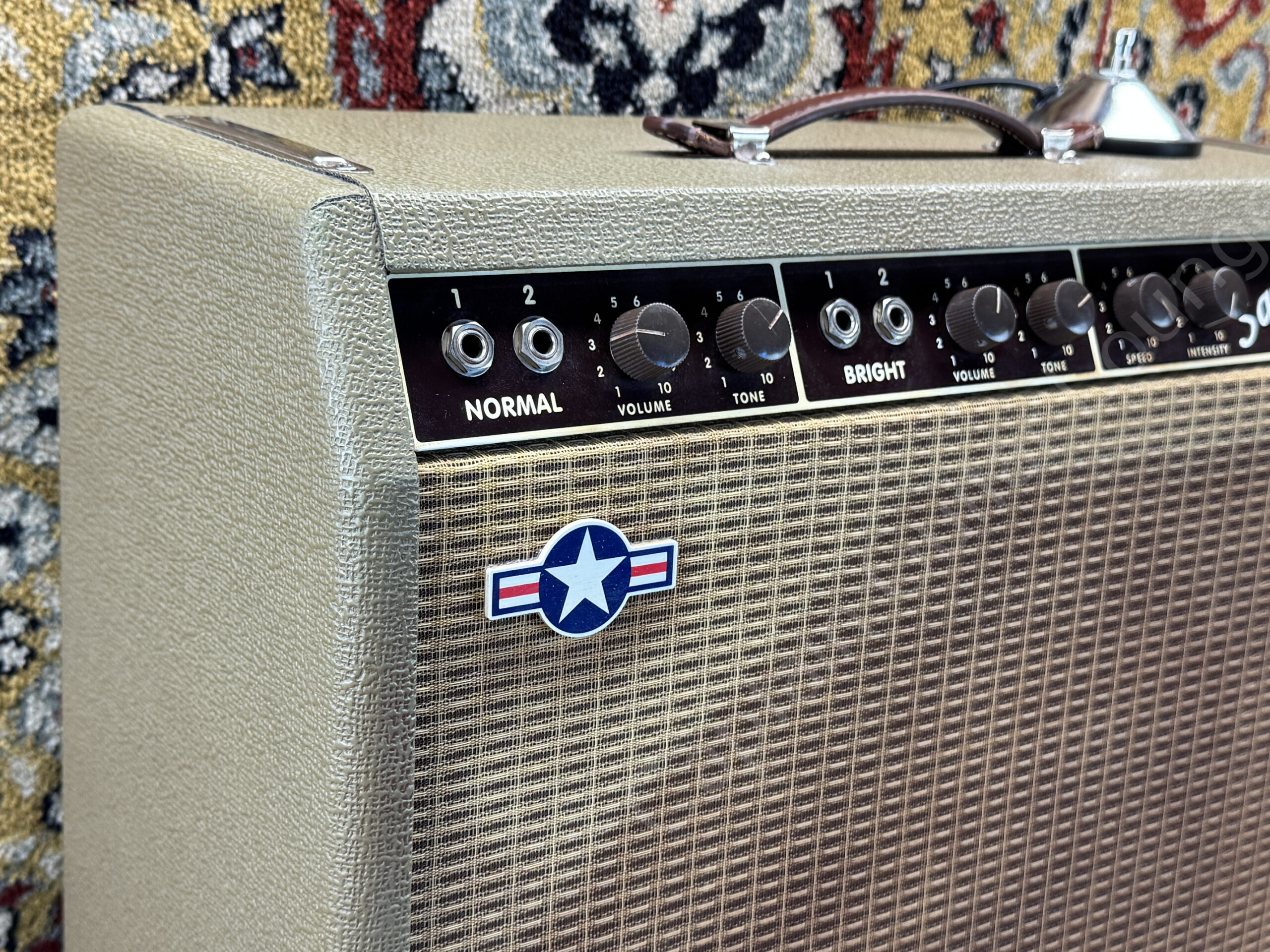

✅ Brownface Front Panel
✅ Brown Barrel Pot Knobs
✅ Weight: 15.25 kilograms
✅ Dimensions: 53.5 x 44.5 x 24 cm
✅ Santa Muerte Aged Special Edition
